摘要

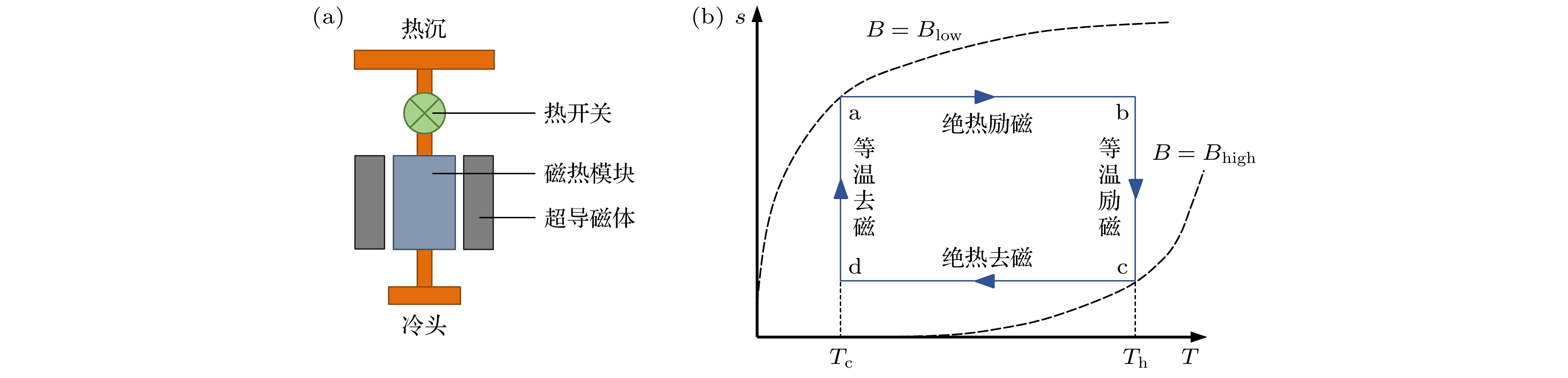

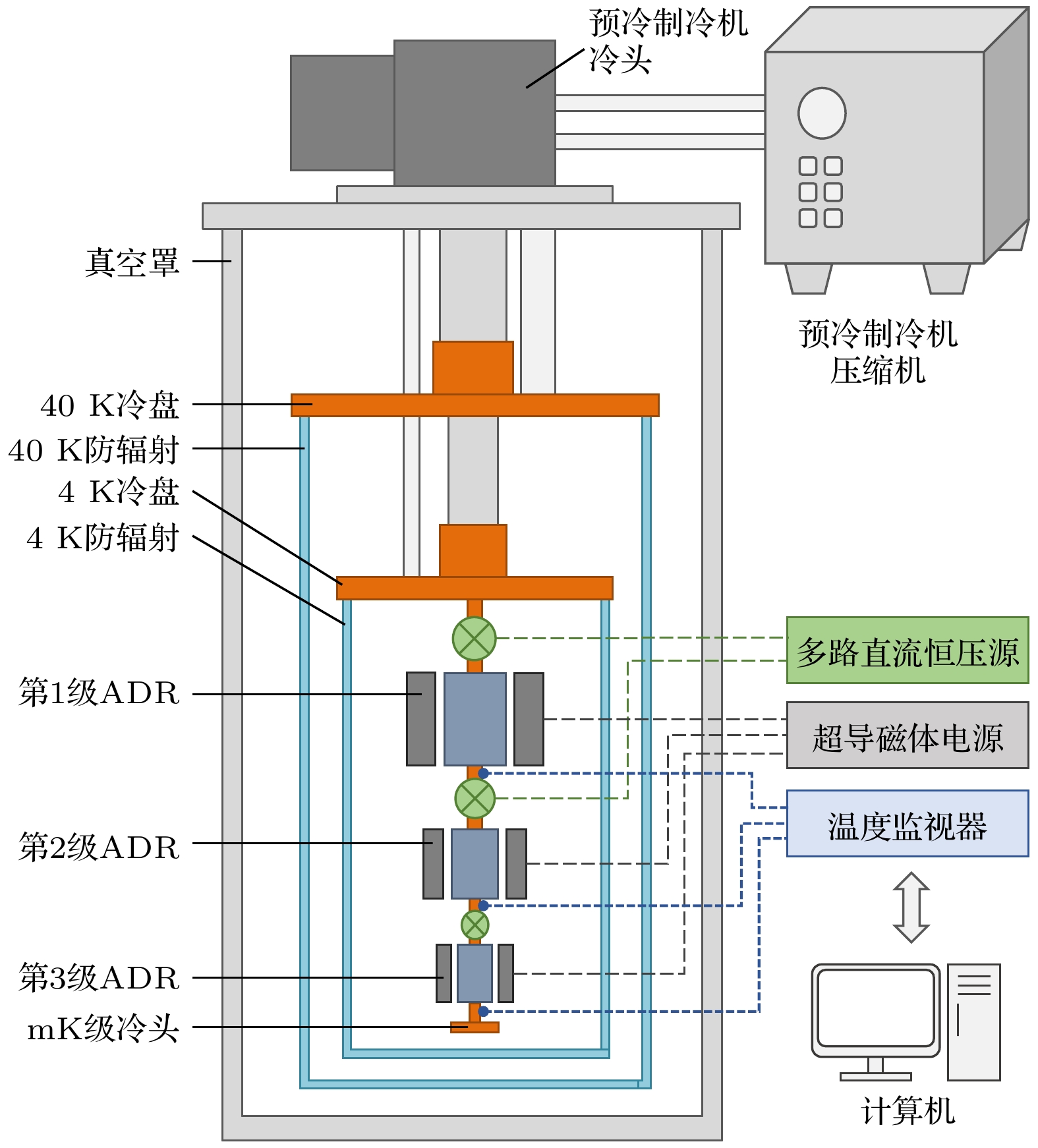

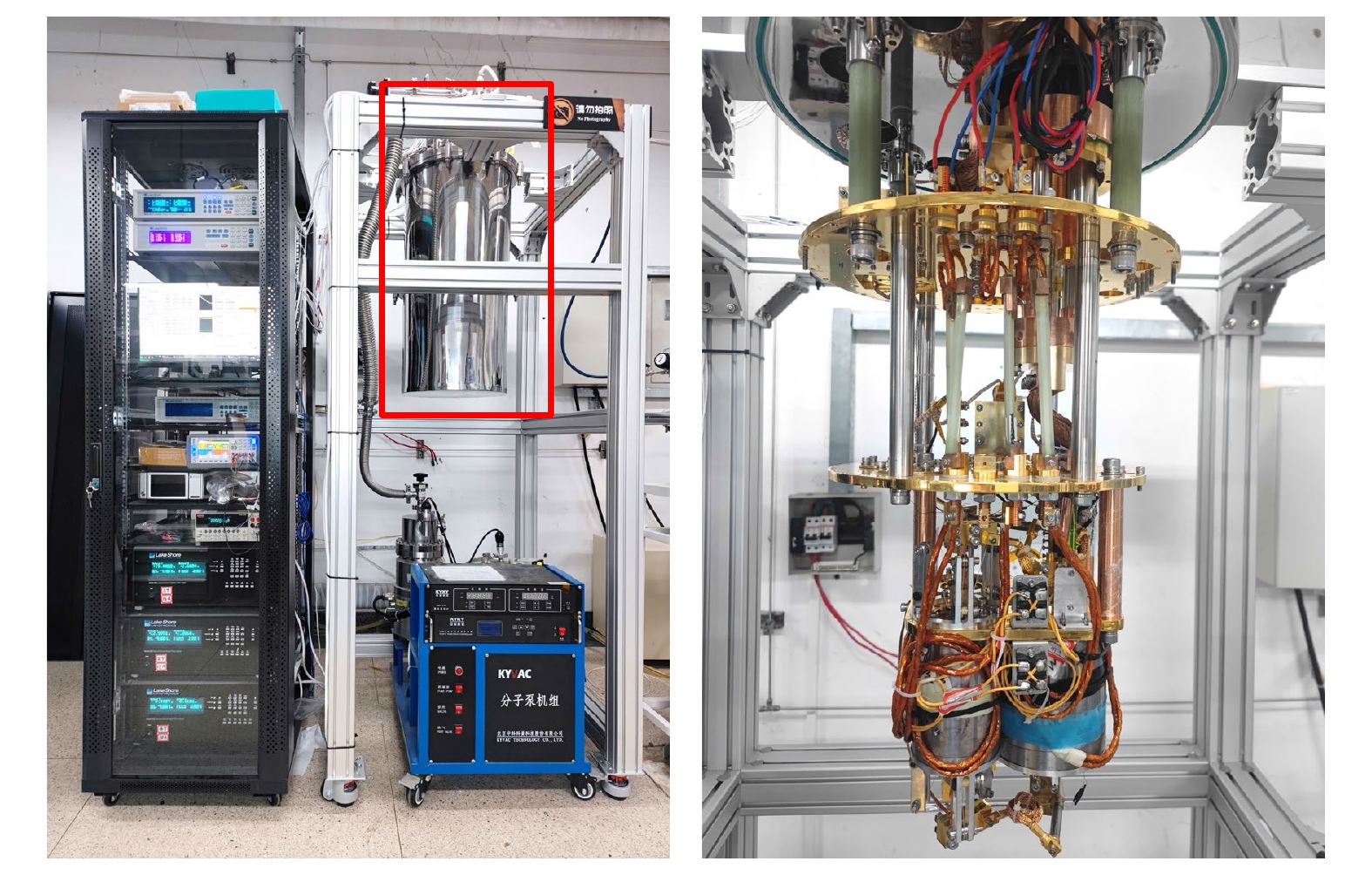

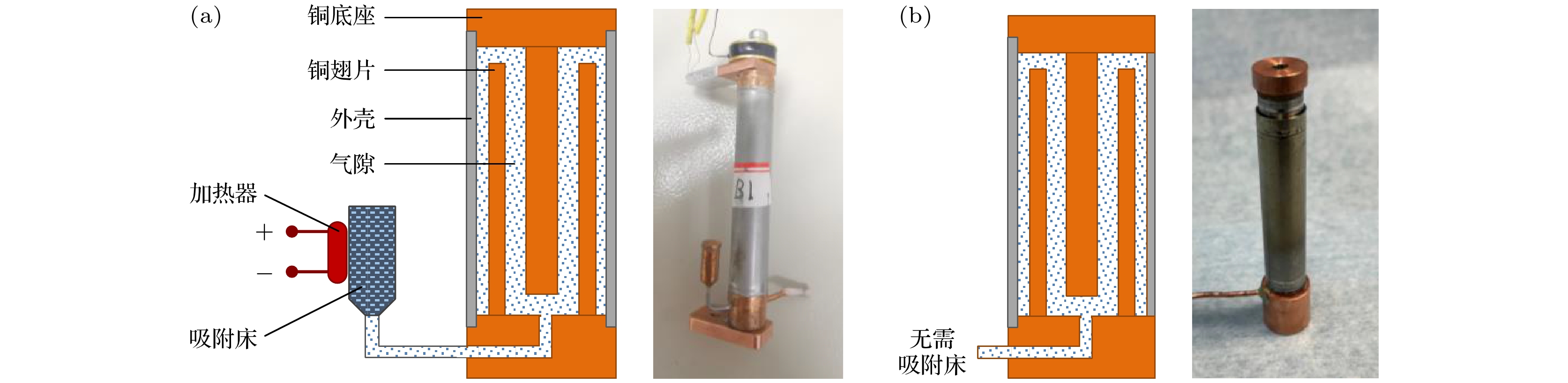

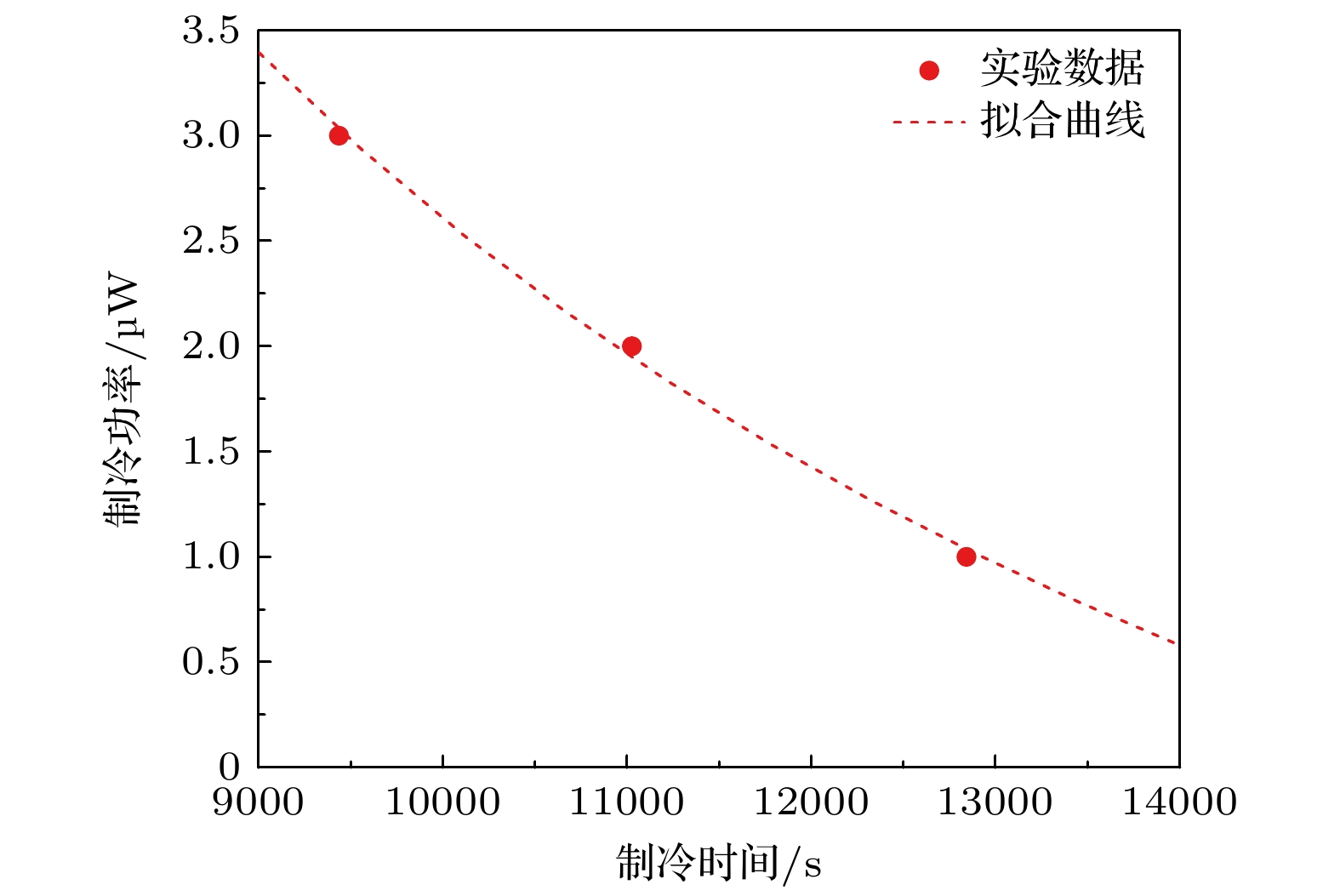

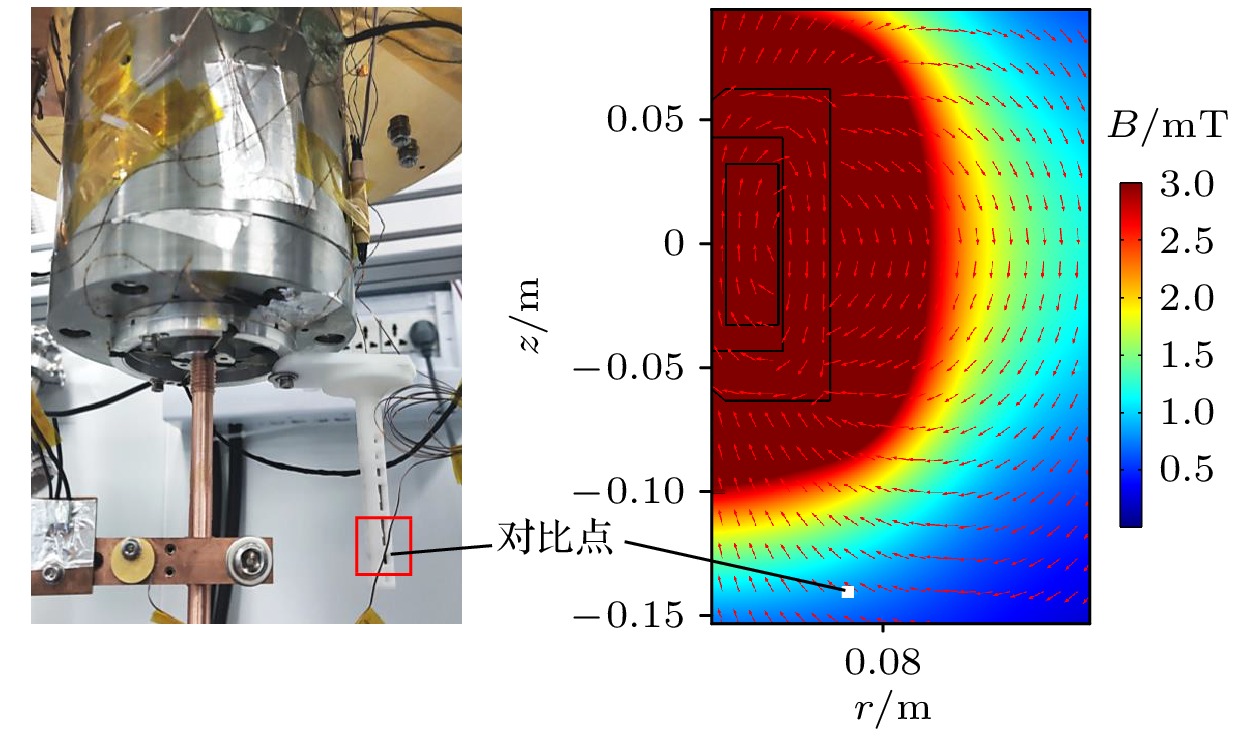

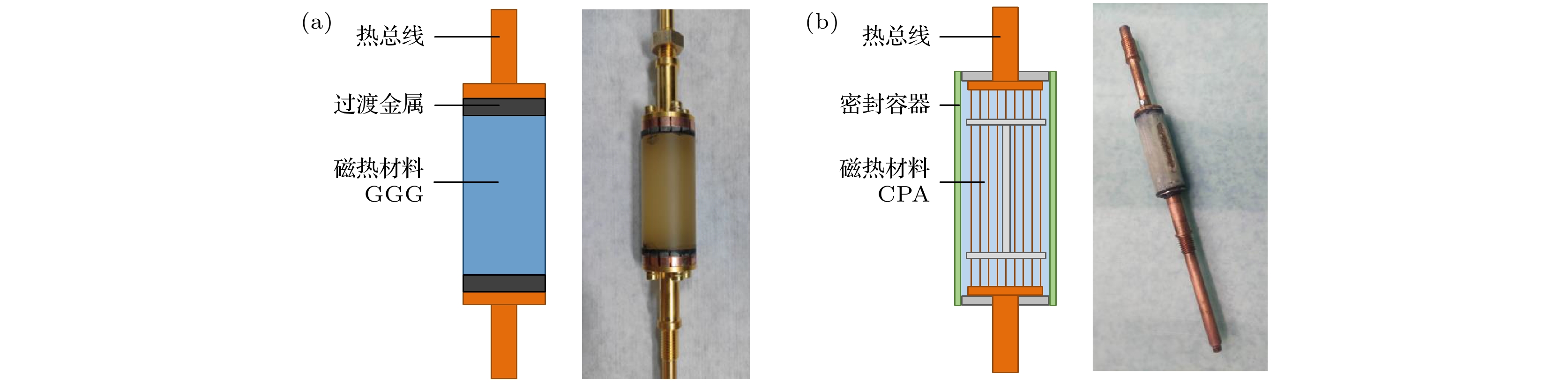

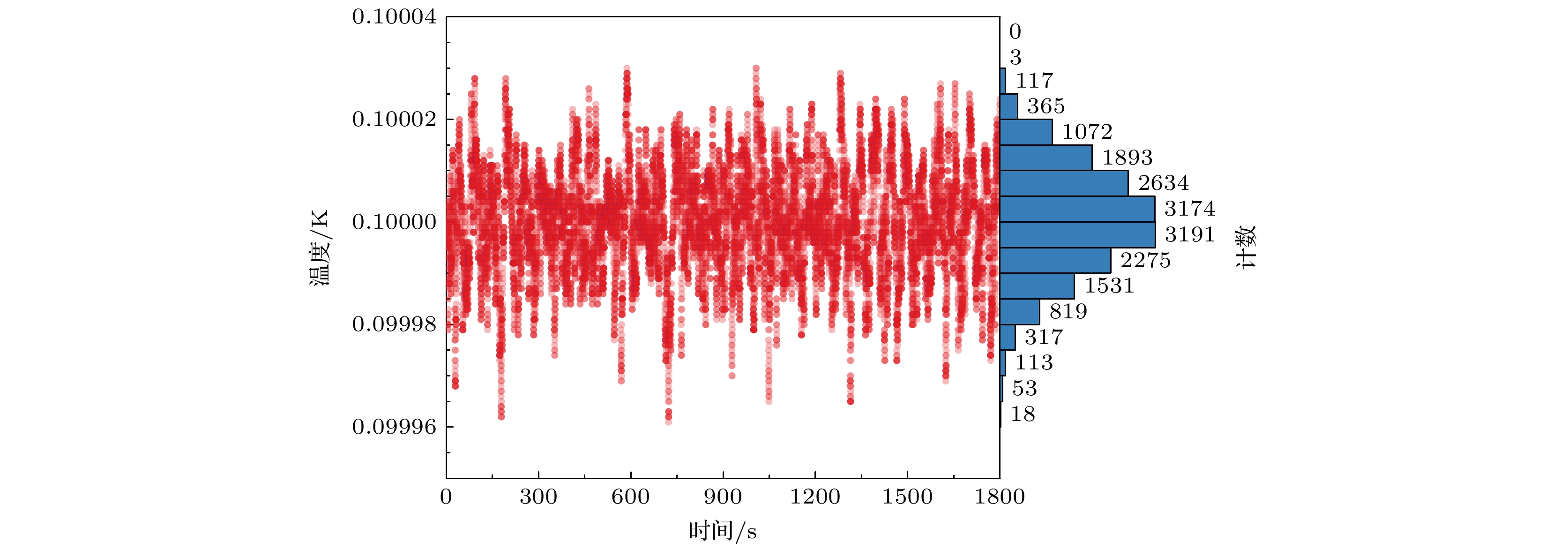

随着近年来凝聚态物理、空间观测与量子技术的不断发展, 极低温制冷需求也日益增多. 绝热去磁制冷具有不依赖重力、结构紧凑、成本较低等特点, 可同时满足空间和地面应用. 本文设计并研制了一台50 mK多级绝热去磁制冷机. 该机为三级串联架构, 由一台GM型脉管制冷机提供4 K预冷; 采用钆镓石榴石和十二水合硫酸铬钾作为制冷工质; 研制的主动式/被动式气隙热开关, 用以控制级间传热; 针对磁屏蔽、恒温控制等构建了多个数值模型进行辅助设计. 目前该机获得的最低制冷温度为38 mK, 100 mK时制冷量约71 mJ, 温度波动10.6 μK. 本研究为后续开展50 mK连续绝热去磁制冷奠定了重要基础.

关键词:

Abstract

With the development of condensed matter physics, space observation, and quantum technology in recent years, the demand for ultra-low temperature refrigeration has increased. The adiabatic demagnetization refrigerator (ADR) has the advantages of being unaffected by gravity, compact structure, and relatively low cost, which can meet the needs of space and ground applications. In this paper, a 50 mK multi-stage ADR is designed and developed which comprises a GM-type pulse tube cryocooler for precooling and three ADR stages connected in series. For easy installation and maintenance, the three ADR stages are placed on a separate cold plate which is connected to the 4 K cold plate via copper columns. The Dy ₃Ga ₅O ₁₂(GGG) is employed as the refrigerant in the first stage, whereas CrK(SO ₄) ₂· 12H ₂O (CPA) is utilized for the second stage and third stage. To control heat transfer between stages and the 4 K heat sink, active gas-gap heat switch and passive gas-gap heat switch are developed, with the latter having a switching ratio over 1000. The 4 T, 2 T and 1 T superconducting magnets are utilized in the 1st, 2nd and 3rd stage, respectively, and a numerical model is used to optimize the design of magnetic shielding. In addition, an ADR simulation model with a proportional-integral-derivative (PID) controller is constructed to assist in tuning the controller parameters in the experiment. The lowest temperature achieved in the experiment is 38 mK, with a temperature fluctuation of 10.6 μK. The durations of different cooling power (1, 2 and 3 μW) at 100 mK are also measured. It is calculated that the no-load maintenance time is about 4.3 h, the leakage heat power is about 4.5 μW, and the total cooling capacity is about 71 mJ. This refrigerator is the first Chinese multi-stage ADR that can reach a temperature under 50 mK, which lays an important foundation for subsequent research on continuous adiabatic demagnetization refrigeration.

Keywords:

adiabatic demagnetization refrigeration/
ultra-low temperature/
multi-stage

作者及机构信息

1.
2.

通信作者:戴巍,cryodw@mail.ipc.ac.cn; 沈俊,jshen@mail.ipc.ac.cn

基金项目:国家重点研究计划(批准号: 2021YFC2203303)、中国科学院仪器设备研制项目(批准号: GJJSTD20190001)和中国科学院理化技术研究所所长基金(批准号: 2022-DW)资助的课题.

Authors and contacts

1.
2.

Corresponding author:Dai Wei,cryodw@mail.ipc.ac.cn; Shen Jun,jshen@mail.ipc.ac.cn

Funds:Project supported by the National Key Research and Development Program of China (Grant No. 2021YFC2203303), the Scientific Instrument Developing Project of the Chinese Academy of Sciences, China (Grant No. GJJSTD20190001), and the Foundation of Director of Technical Institute of Physics and Chemistry, Chinese Academy of Sciences, China (Grant No. 2022-DW).
