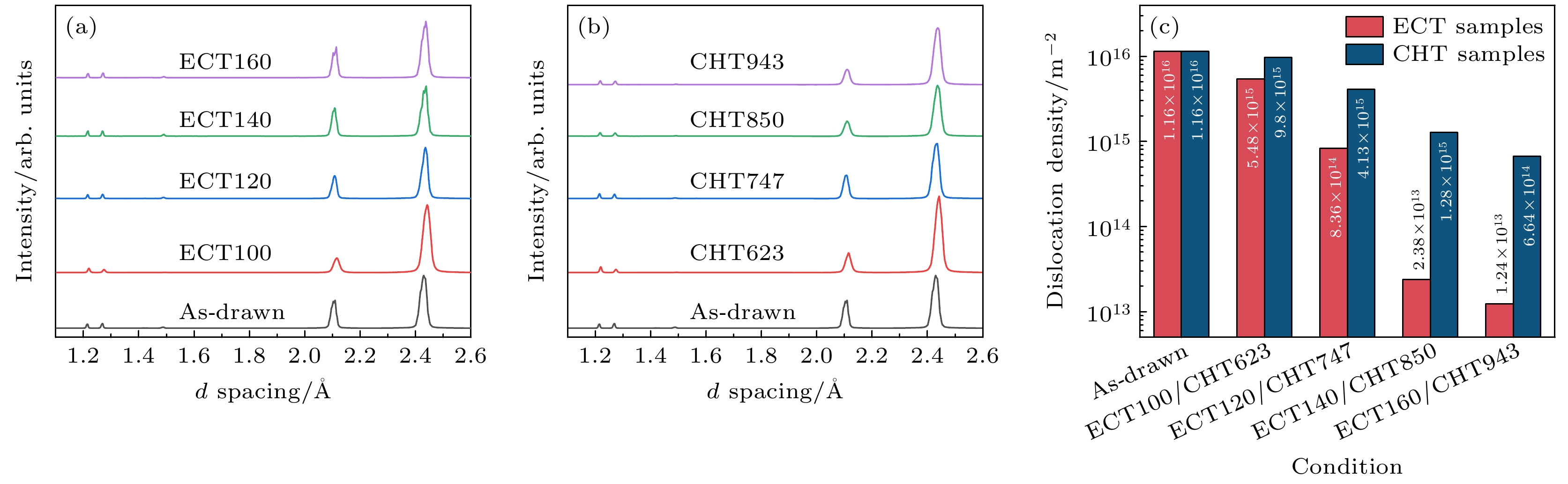

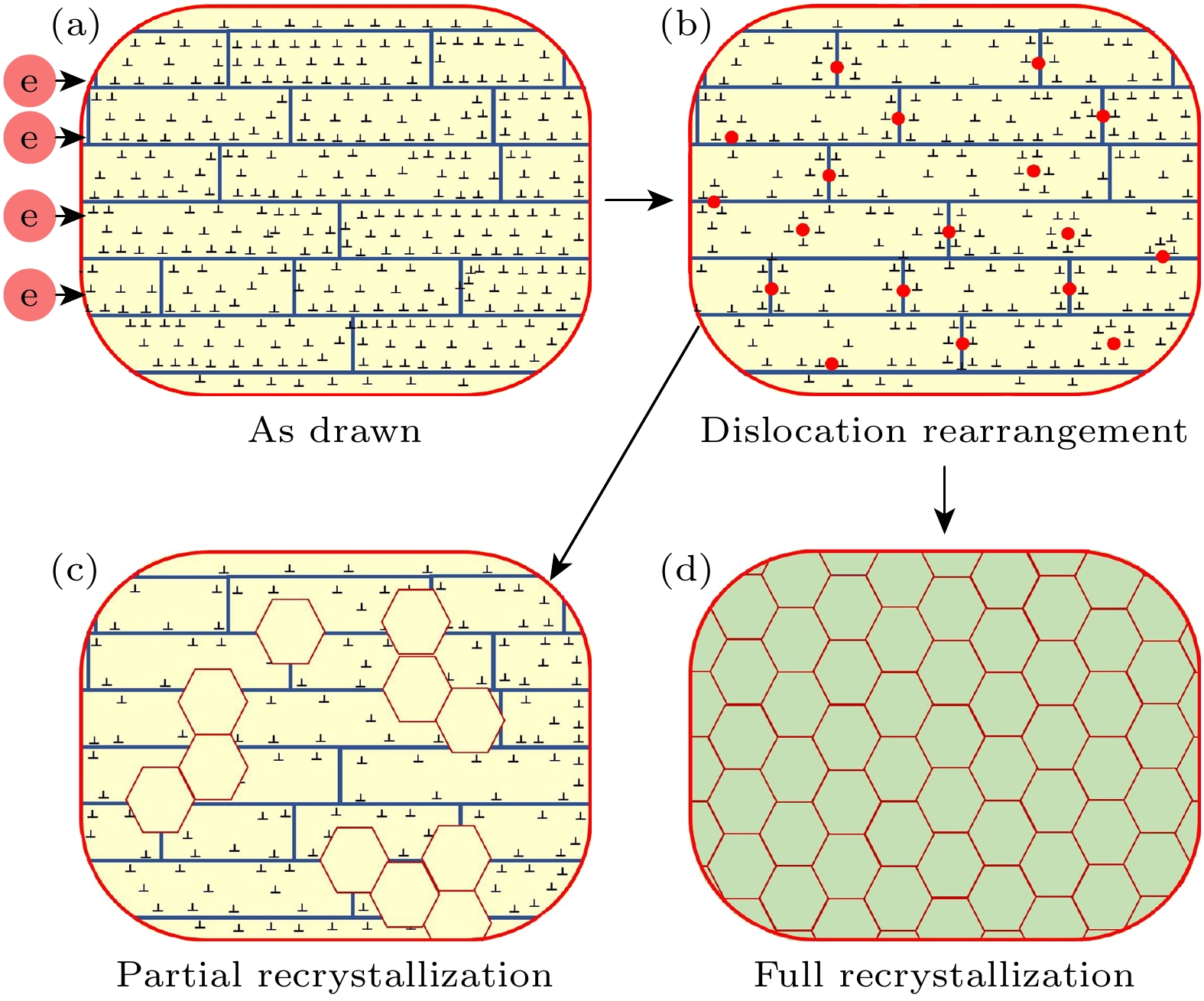

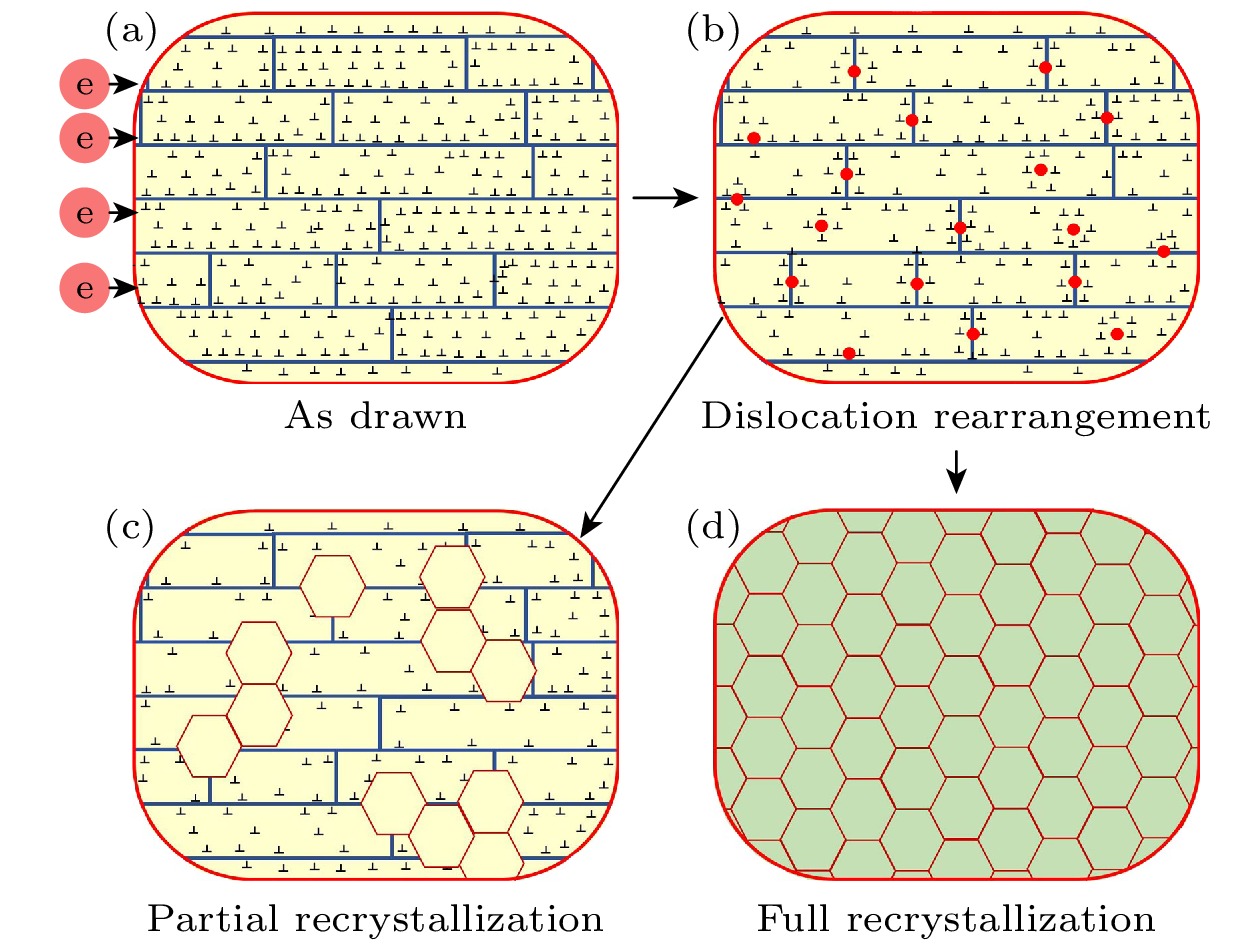

高熵合金纤维因其优异的力学性能和稳定性, 在高科技领域具有广阔的应用前景. 然而, 该类材料强塑性不匹配的问题制约了其进一步应用, 虽然热处理可以进一步优化其力学性能, 但传统热处理方法对时间和能源的消耗较高, 且难以精准调控材料的组织, 易导致晶粒粗化. 本文采用电流处理技术调制微米级(直径~70 μm)冷拔态CoCrFeNi高熵合金纤维的性能, 采用电子背散射衍射、透射电子显微镜以及同步辐射等技术探讨了电流处理过程中的热效应与非热效应对材料组织结构和力学性能的影响, 建立了CoCrFeNi纤维再结晶形核和长大模型. 相比于传统热处理, 电流处理过程中电子风力和焦耳热效应的协同作用显著加快再结晶过程, 获得更细小且均匀的晶粒, 并有效降低位错密度, 进而获得更优异的力学性能. 电流处理可获得屈服强度为400—2033 MPa的纤维, 延伸率最高可达53%. 本文证实, 电流处理可作为优化高熵合金纤维组织结构及性能的有效手段, 为高性能金属纤维的制备及工程化应用提供理论支撑和工艺指导.High-entropy alloy (HEA) microfibers exhibit promising prospects in microscale high-tech applications due to their exceptional mechanical properties and stability. However, the strength-plasticity tradeoff largely hinders their further industrial applications. Heat treatment can optimize the mechanical properties of HEA microfibers. However,the traditional heat treatment (CHT) faces challenges in accurately adjusting the microstructures in a short period of time, while also being prone to grain coarsening, which can affect performance. In this study, an electric current treatment (ECT) technique is used to finely modulate the properties of cold-drawn CoCrFeNi high-entropy alloy microfibers on a microscale (~70 μm in diameter), the effects of thermal and athermal effects during ECT on microstructure and mechanical properties are systematically investigated through electron back scatter diffraction, transmission electron microscopy, and synchrotron radiation. A model of recrystallization, nucleation and growth of HEA microfibers is established. Compared with CHT, the synergistic effects of electron wind force and Joule heating during ECT significantly accelerate recrystallization kinetics, yielding finer and more homogeneous grains with a great decrease in dislocation density, and finally lead to better mechanical properties. The ECT-processed HEA microfibers achieve a yield strength in a range from 400 to 2033 MPa and a tensile elongation reaching 53%, which are much higher than those of CHT samples. These results demonstrate that the ECT is effective for optimizing the microstructure and properties of HEA microfibers, and can also provide both a theoretical foundation and technical guidance for fabricating high-performance metallic microfibers.
-
Keywords:
- high-entropy alloy /
- microfibers /
- electric current treatment /
- microstructure /
- mechanical properties
-
电流密度
/(A·mm–2)标记 稳定温度/K 传统热处理
温度/K标记 100 ECT100 623 623 CHT623 120 ECT120 747 747 CHT747 140 ECT140 850 850 CHT850 160 ECT160 943 943 CHT943 180 ECT180 1013 1013 CHT1013 200 ECT200 1075 1075 CHT1075
下载: 导出CSV
样品 晶粒尺寸/μm 样品 晶粒尺寸/μm ECT100 — CHT623 — ECT120 1.5±0.2 CHT747 1.3±0.1 ECT140 1.9±0.2 CHT850 1.7±0.2 ECT160 2.5±0.7 CHT943 3.1±0.6 ECT180 4.6±1.1 CHT1013 5.8±1.3 ECT200 15.0±3.1 CHT1075 16.8±4.0
下载: 导出CSV

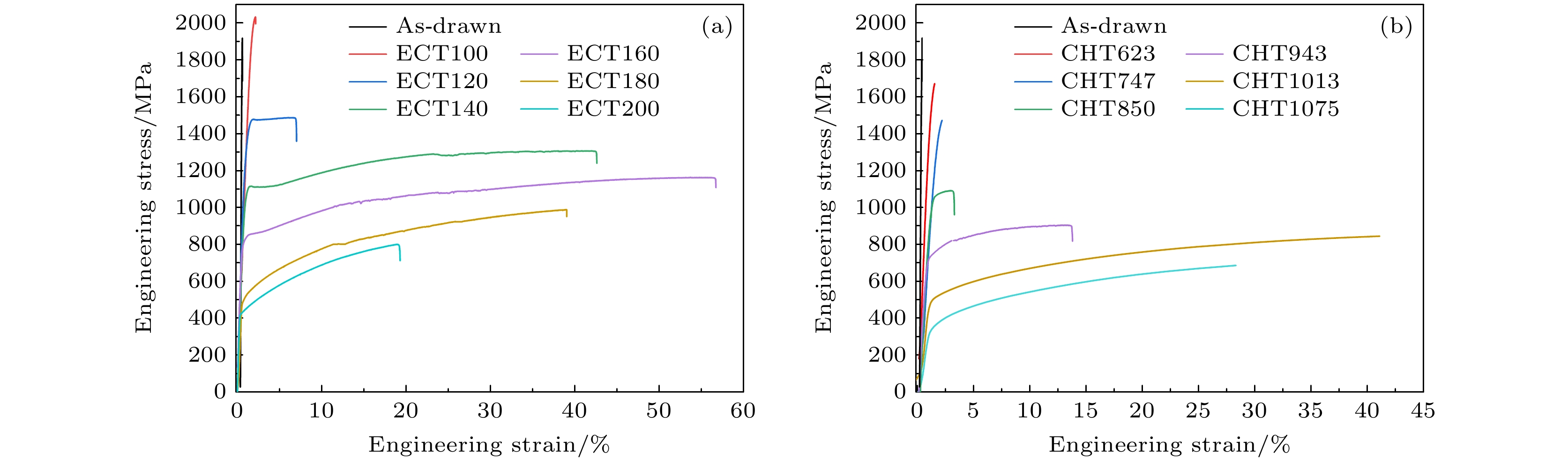

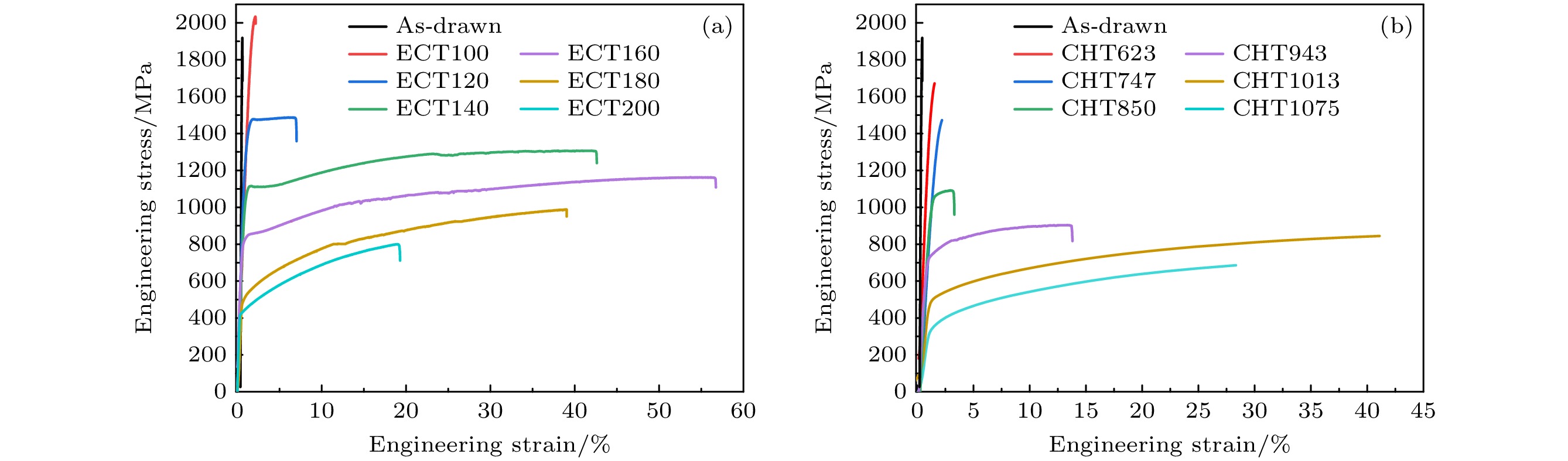

样品 屈服强度/
MPa均匀延伸率/
%样品 屈服强度/
MPa均匀延伸率/
%As drawn 1930 0 — — — ECT100 2033 0 CHT623 1680 0 ECT120 1480 7 CHT747 1490 0 ECT140 1130 43 CHT850 1050 3 ECT160 800 52 CHT943 715 13.5 ECT180 550 39 CHT1013 500 41 ECT200 400 19 CHT1075 360 28
下载: 导出CSV
-
