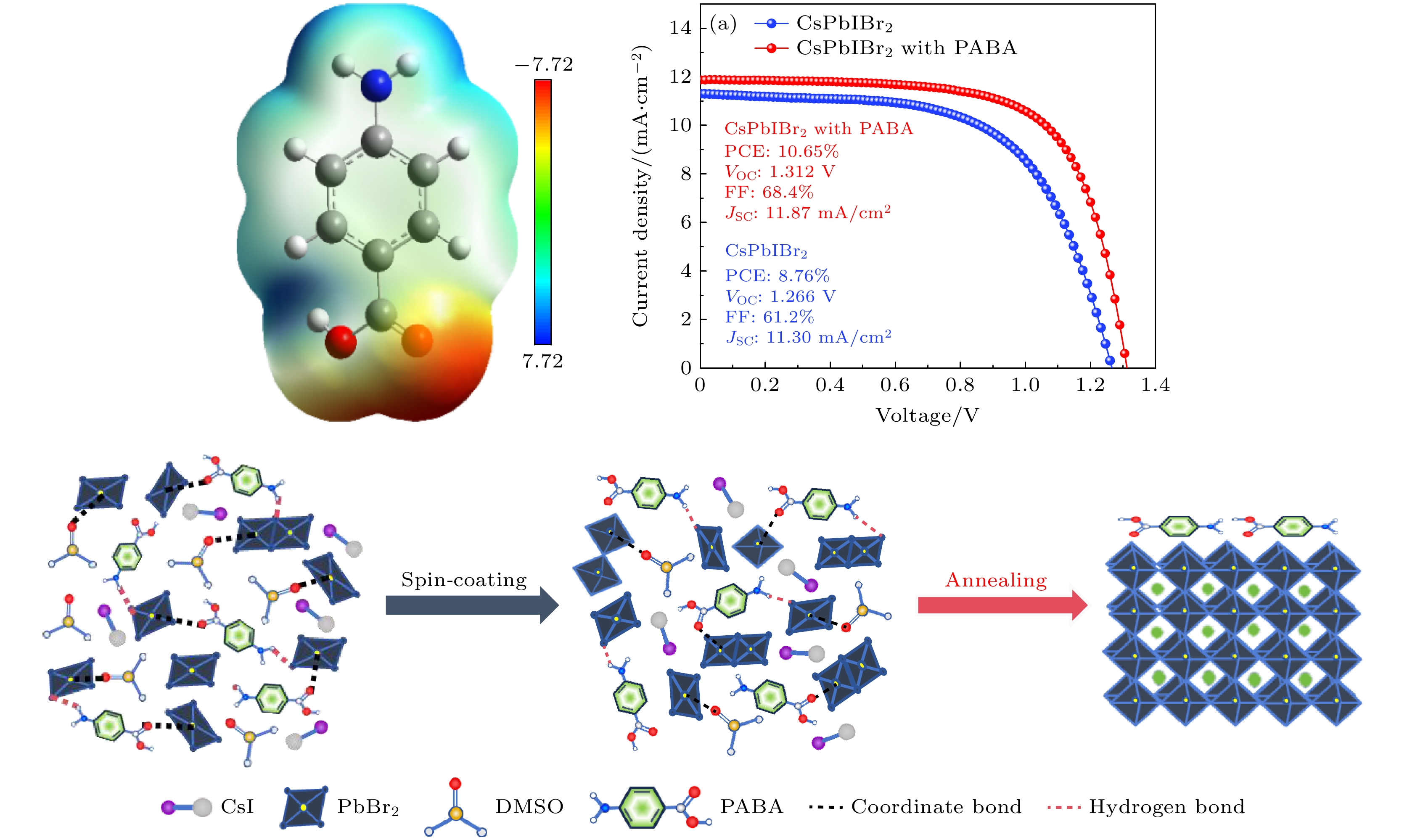

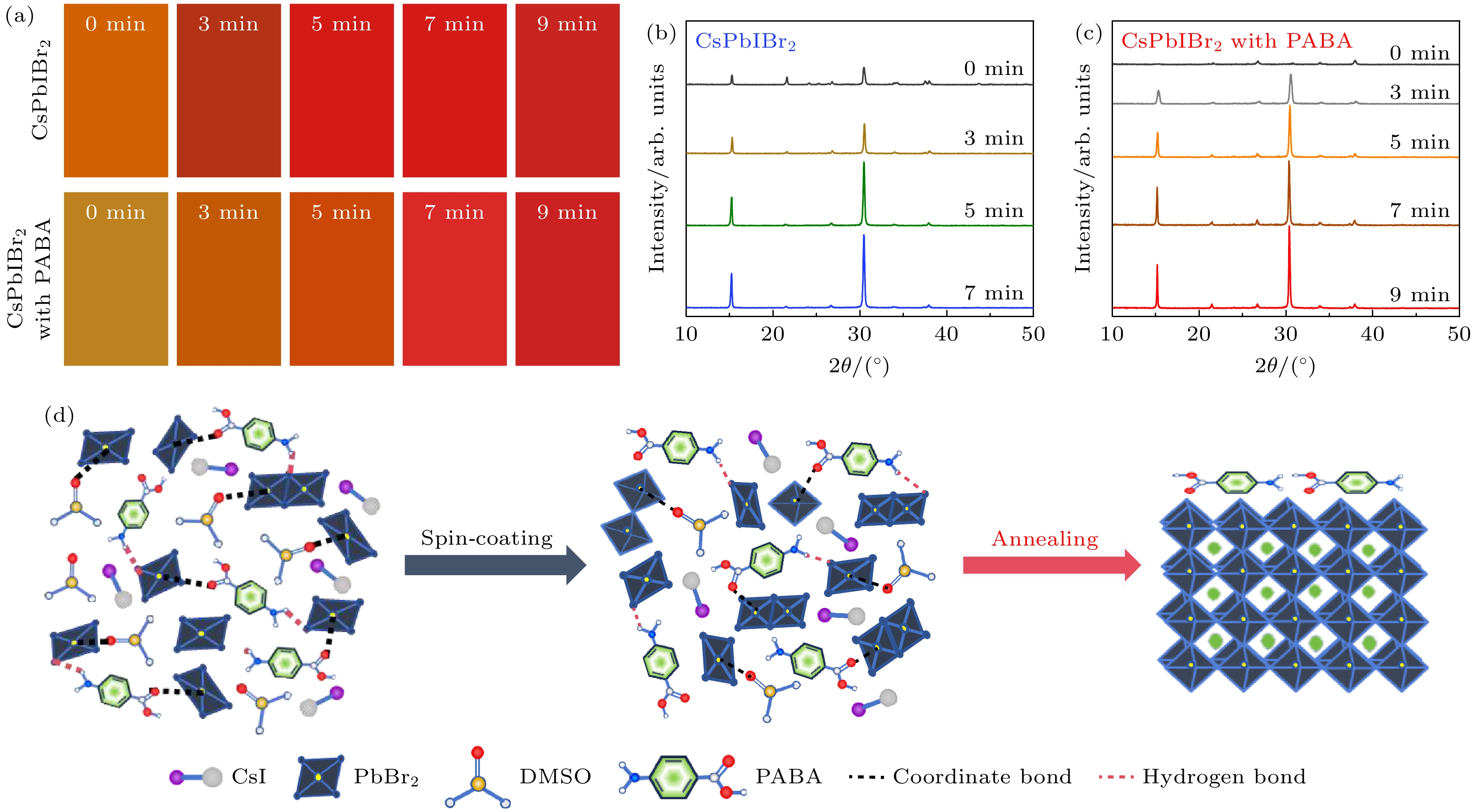

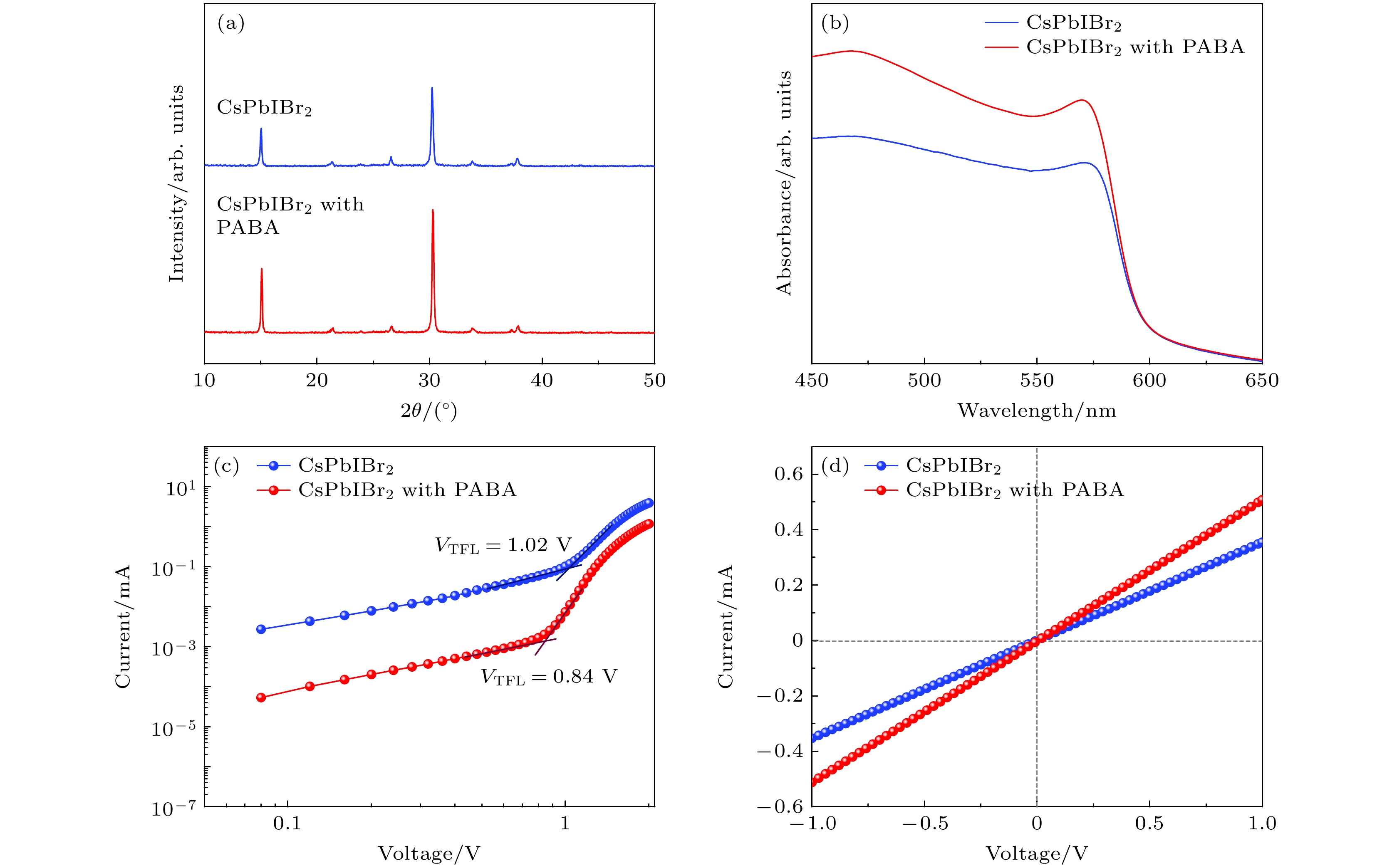

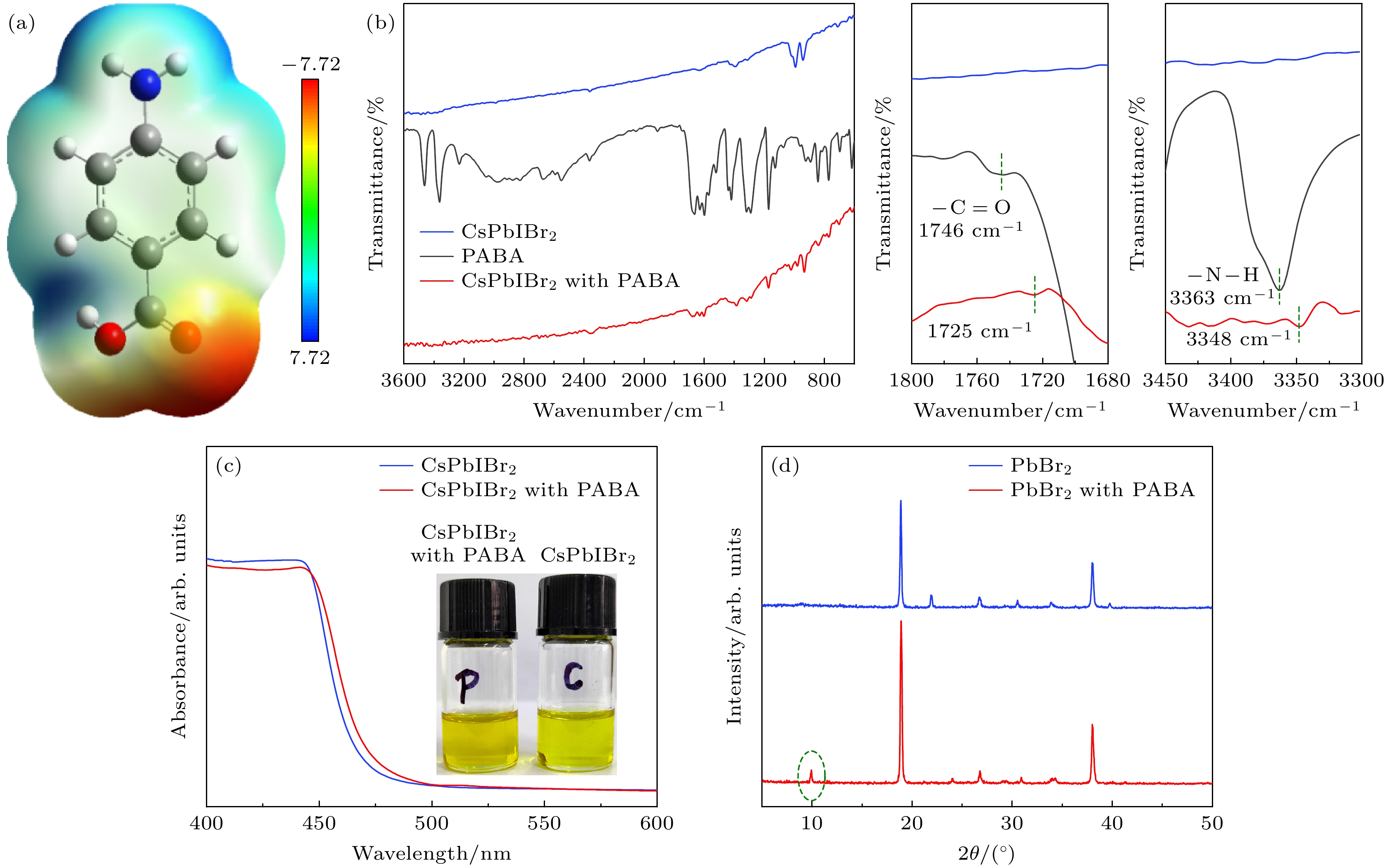

无机CsPbIBr2钙钛矿具有较高的相稳定性和较宽的带隙, 可用于研发钙钛矿叠层电池或半透明电池技术, 具有良好的发展潜力. 高质量的CsPbIBr2钙钛矿薄膜是制备高效钙钛矿太阳能电池的关键. 为了提高CsPbIBr2钙钛矿薄膜的结晶质量, 本文将对氨基苯甲酸(PABA)添加到钙钛矿前驱体中以调控其结晶过程. 由于C=O和Pb2+具有较强的配位作用, 同时—NH2与卤素阴离子可以形成氢键, 前驱体溶液中形成了新的亚稳态中间相. 该中间相减缓了钙钛矿的结晶速率, 调控了晶粒的生长, 制备了晶粒尺寸增大且致密的钙钛矿薄膜. 本文采用电化学测试和光谱分析相结合的表征方法分析了添加PABA后钙钛矿薄膜的质量及相应电池的光伏性能. 结果表明, 添加PABA后, 钙钛矿薄膜的结晶质量提高、光吸收增强、缺陷密度减小. 相应电池的光电转换效率提高了约22%. 未封装的电池在空气中存放1500 h后, 平均效率依然保持了初始值的80%, 表现出较高的稳定性.Inorganic CsPbIBr2 perovskite features high phase stability and light absorption coefficient, making it suitable for the development of perovskite tandem cells or semi-transparent cells. High-quality CsPbIBr2 perovskite films are of crucial importance for fabricating efficient solar cells. However, compared with CsPbI3 and CsPbI2Br, the CsPbIBr2 precursor has poor crystallinity and low film coverage, which is prone to generating pinholes and defects. Therefore, serious charge recombination often occurs inside the devices. To solve this problem, p-aminobenzoic acid (PABA) is added to the CsPbIBr2 precursor to regulate its crystallization dynamics in this work. Electrostatic potential distribution of PABA shows that the electron-rich regions (negative charge regions) are mainly located near the C=O. Fourier transform infrared spectrum indicates the existence of coordination interaction between C=O and Pb²+ and the formation of hydrogen bonds between —NH2 and halide anions. Ultraviolet-visible absorption (UV-Vis) spectrum and X-ray diffraction (XRD) spectrum demonstrate that a new intermediate phase, PABA·Pb···Br(I), is formed between PABA molecules and the components of CsPbIBr2 precursor. The formation of this intermediate phase slows down the crystallization rate of the perovskite, regulates the grain growth, and enables the preparation of dense perovskite films. XRD, UV-Vis, space charge limited current, and linear sweep voltammetry are used to characterize the film quality. After the addition of PABA, the film quality of CsPbIBr2 perovskite is improved. Thus, the light absorption is enhanced. The defect density is reduced. And the conductivity is increased. The efficiency of the champion cell increases to 10.65% compared with that of the control cell (8.76%). Further, dark current-voltage curves, Mott-Schottky curves, electrochemical impedance spectra, and photoluminescence spectra are utilized to analyze the reasons for the improved photovoltaic performance. After the addition of PABA, the CsPbIBr2 device exhibits reduced leakage current, enhanced built-in electric field, suppressed charge recombination, and improved charge extraction at the interface. In addition to the enhancement in photovoltaic efficiency, the PABA-regulated perovskite cells also exhibit high stability. After being stored in air for 1500 h, the average efficiency of the unencapsulated cells remains 80% of the initial value.
-
Keywords:
- CsPbIBr2 /
- inorganic perovskite /
- crystallization regulation /
- perovskite solar cells
[1] [2] [3] [4] [5] [6] [7] [8] [9] [10] [11] [12] [13] [14] [15] [16] [17] [18] [19] [20] [21] [22] [23] [24] [25] [26] [27] [28] [29] [30] [31] [32] [33] [34] [35] [36] [37] [38] [39] [40] [41] [42] [43] [44] [45] [46] [47] [48] [49] -

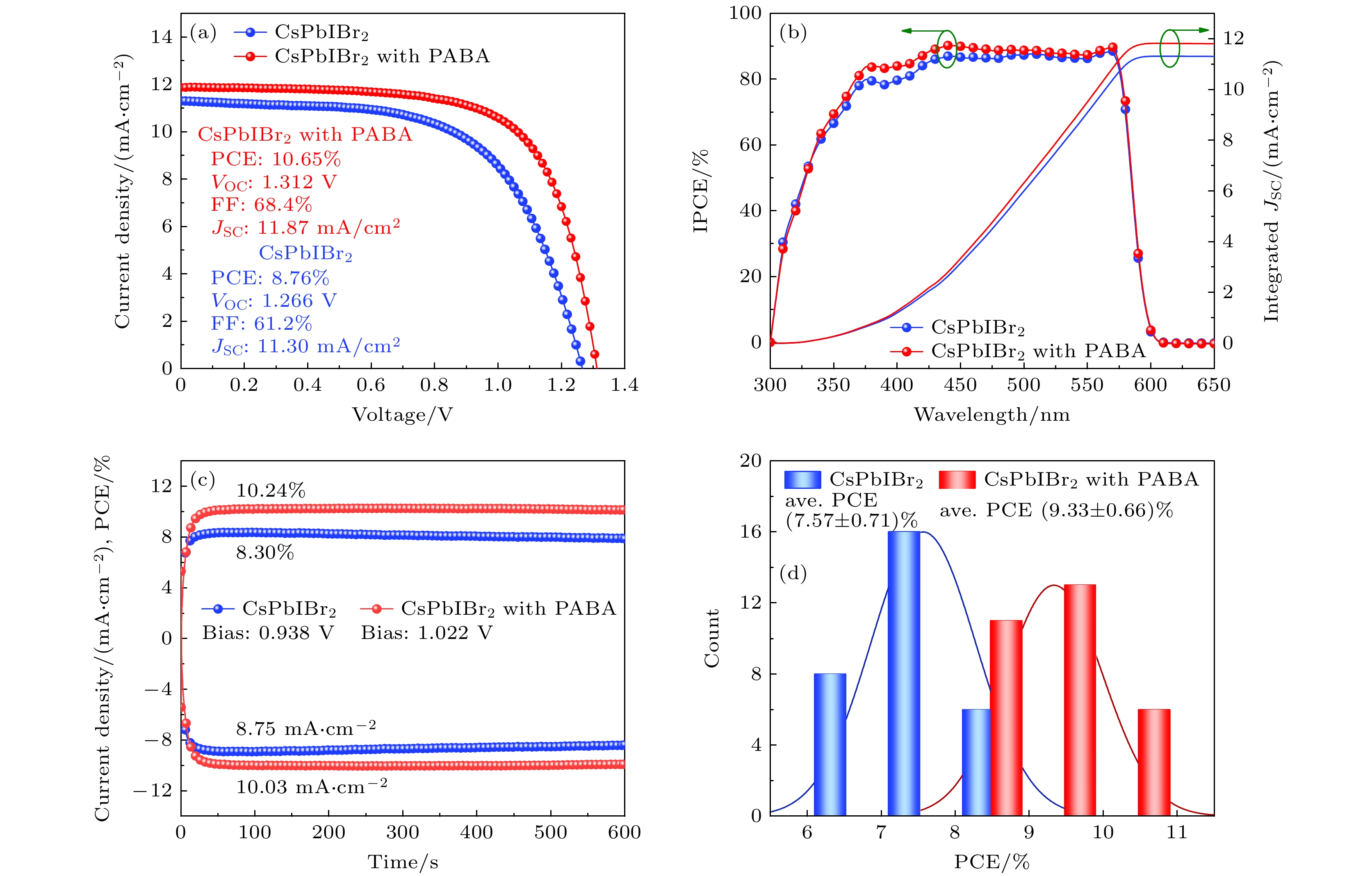

电池结构 JSC/(mA·cm–2) VOC/V FF/% PCE/% Ref. ITO/TiO2/CsPbIBr2/Carbon 11.87 1.312 68.4 10.65 本文 FTO/SnO2/CsPbIBr2/Carbon 9.23 1.08 60 5.95 [32] ITO/TiO2/CsPbIBr2/CuSCN/Carbon 10.01 1.19 60 7.17 [33] ITO/TiO2/CsPbIBr2/Ti3C2Clx/Carbon 11.56 1.29 69.93 10.43 [34] FTO/TiO2/CsPbIBr2/GQDs/Carbon 11.93 1.25 65.4 9.8 [35] ITO/TiO2/CsPbIBr2/Carbon 11.64 1.31 67 10.23 [36] ITO/TiO2/CsPbIBr2/Carbon 11.69 1.29 66.97 10.10 [37] FTO/TiO2/CsPbIBr2/Carbon 11.25 1.32 71.9 10.68 [12] FTO/TiO2/CsPbIBr2/DES/Carbon 9.2 1.24 61.5 7.04 [38] FTO/TiO2/m-TiO2/CsPbIBr2/Carbon 11.67 1.24 70 10.13 [39] FTO/TiO2/ET/CsPbIBr2/Carbon 11.63 1.325 72.23 11.13 [40] FTO/TiO2/PPC-CsPbIBr2/Carbon 10.25 1.25 57.5 7.36 [41] ITO/TiO2/ODTC-CsPbIBr2/Carbon 11.48 1.30 68 10.15 [13] FTO/TiO2/m-TiO2/PTU-CsPbIBr2/Carbon 11.28 1.26 71 10.09 [42] FTO/Li:TiO2/CsPbIBr2/Carbon 10.01 1.26 64 8.09 [43] FTO/TiO2/CsPbIBr2-SAM/Carbon 11.81 1.317 71.1 11.06 [44] FTO/TiO2/Cd-CsPbIBr2/carbon 11.53 1.324 69.63 10.63 [45] FTO/TiO2/PMMA/CsPbIBr2/carbon 11.36 1.307 62 9.21 [46] FTO/TiO2/MAAc/CsPbIBr2/carbon 10.86 1.26 64.56 8.85 [47] FTO/TiO2/CsPbIBr2/P3HT:PC61BM/Carbon 11.79 1.31 74.47 11.54 [48] FTO/TiO2/CsPbIBr2/Carbon 10.88 1.08 64 7.52 [49] -
