黄秋萍; 朱晓帅; 任子嫣; 陈海云; 凌强; 彭保进; 陈达如

doi:10.7498/aps.74.20250449

摘要

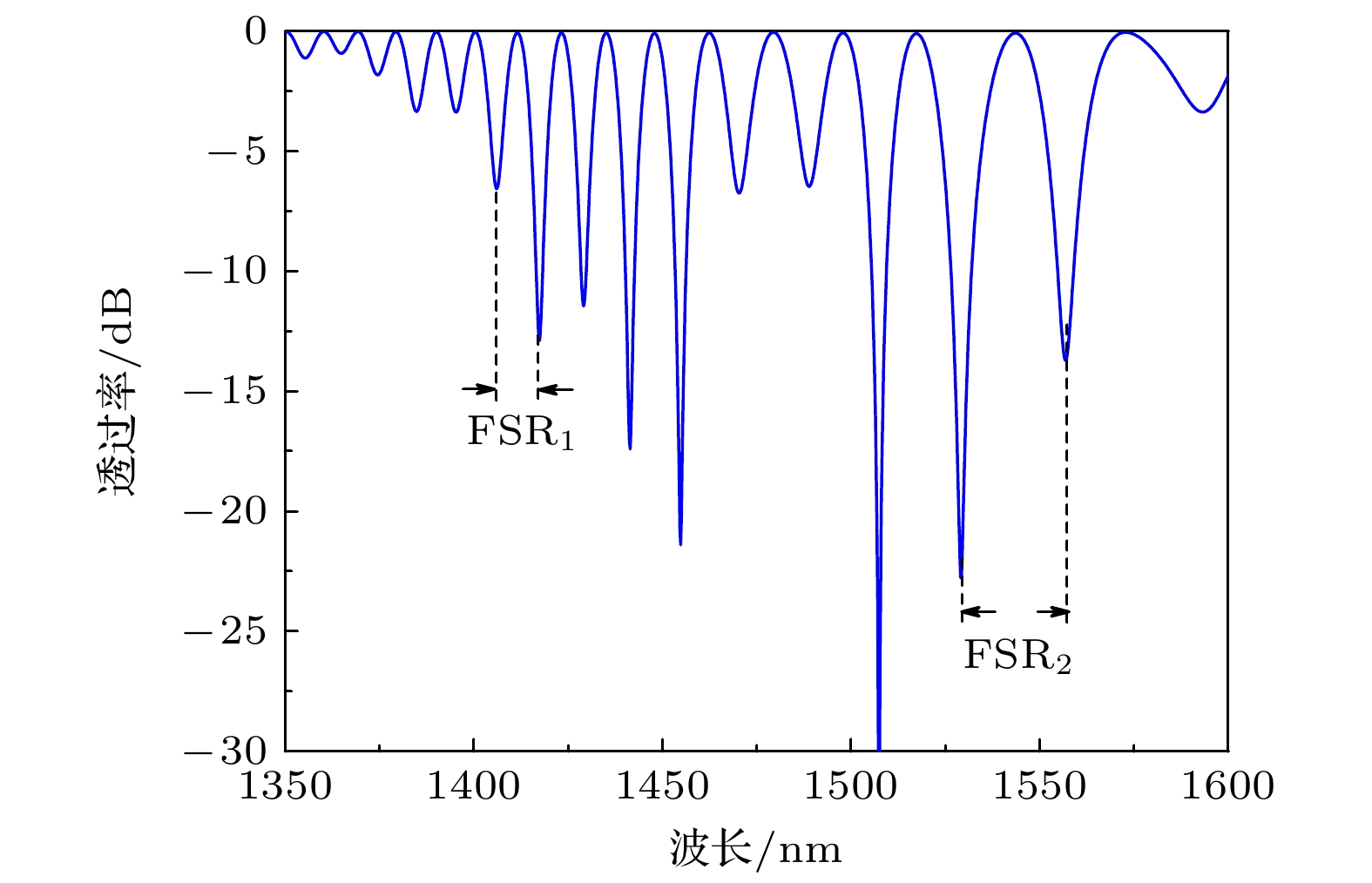

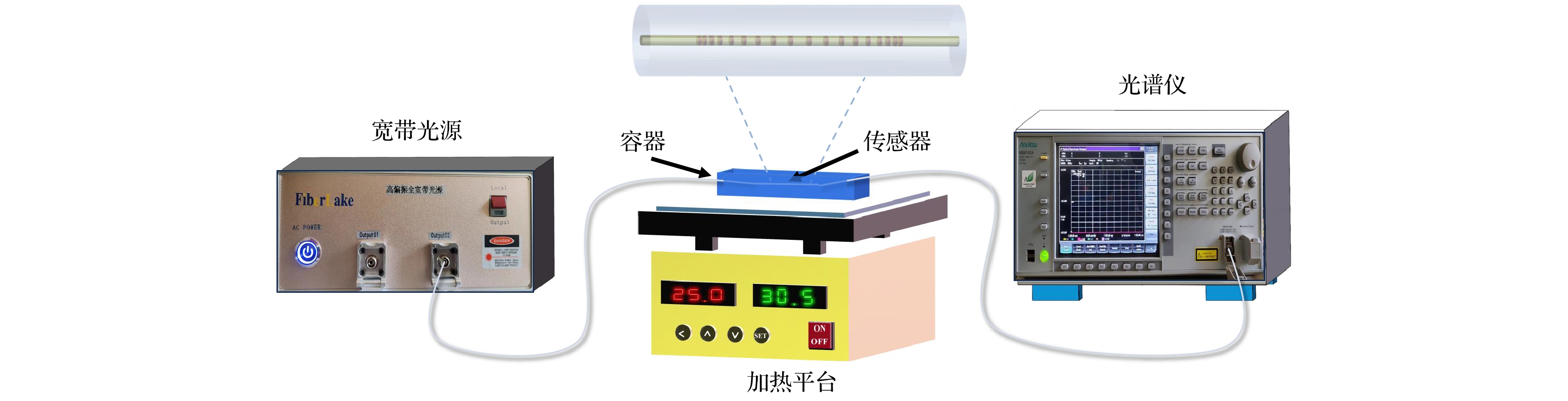

本文提出了一种方法, 传感器由两个长度和平均周期相同但啁啾系数相反的啁啾长周期光纤光栅组成, 由于马赫-曾德尔干涉效应和光栅的啁啾效应, 对称啁啾长周期光纤光栅的透射谱表现为频率渐变的干涉条纹, 相邻干涉谷间隔随波长而增大, 条纹中不同波长位置的干涉谷对同一被测参量的响应灵敏度不同, 因而可以通过矩阵解调实现对多个参量的同时测量. 对传感器的模式干涉机制、光谱特性和传感原理进行了理论和数值分析, 并通过紫外光逐点曝光法刻制了光栅结构, 平均光栅周期为321 μm, 啁啾系数为±21.9 μm/cm, 总长度为4.34 cm, 实现了对环境折射率和温度双参量的同时测量. 此外, 由于条纹光谱中有多个频率不同的干涉谷, 因此该传感器结构可以被进一步拓展应用于对3个及以上环境参量的同时测量, 在生物化学传感、环境监测等诸多领域有较好的应用前景.

关键词:

Abstract

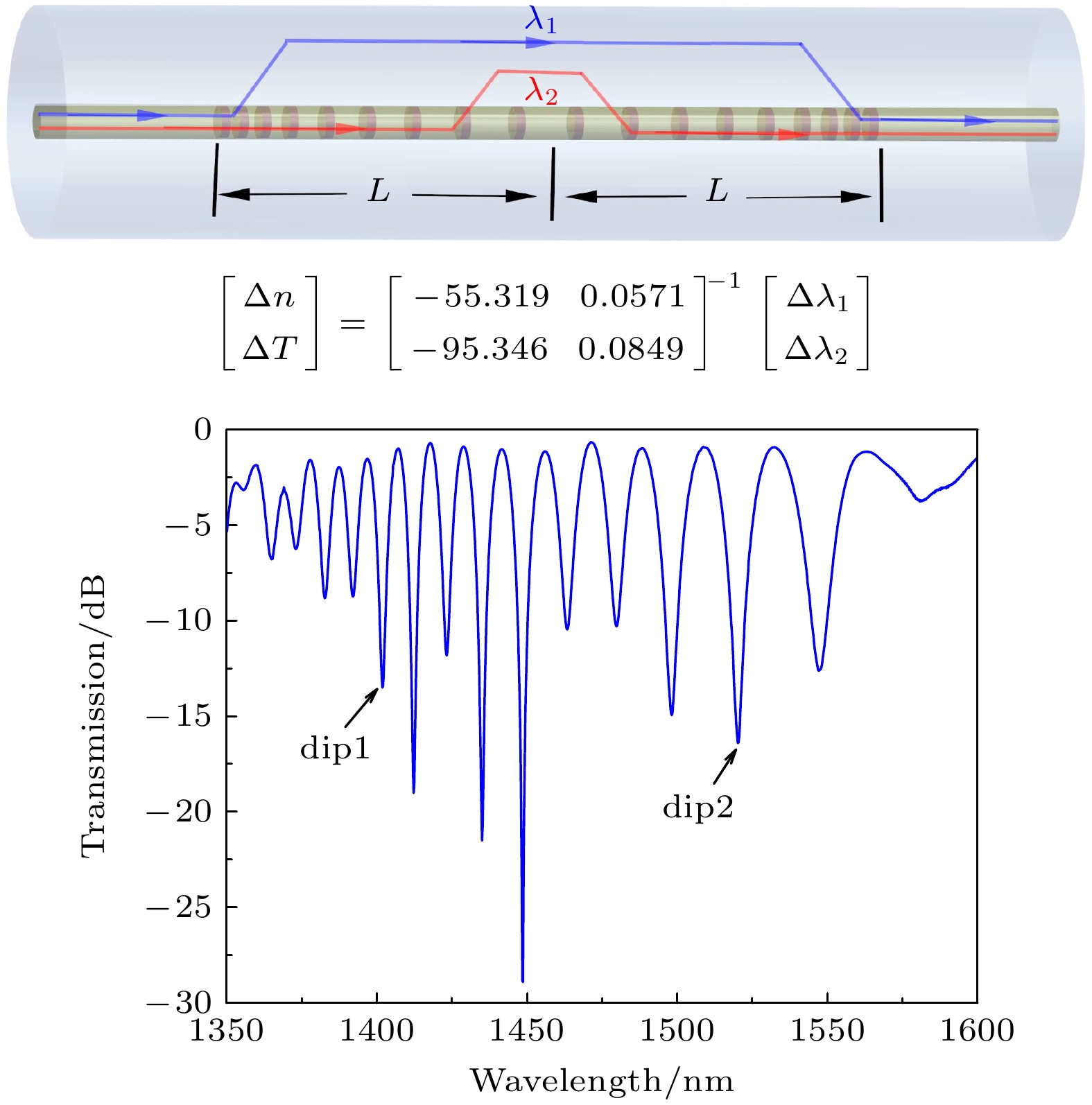

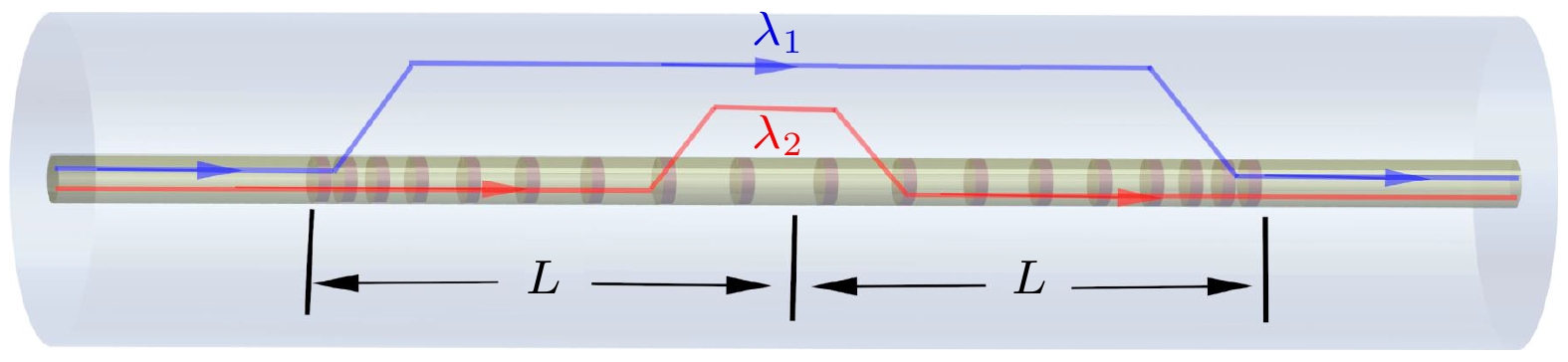

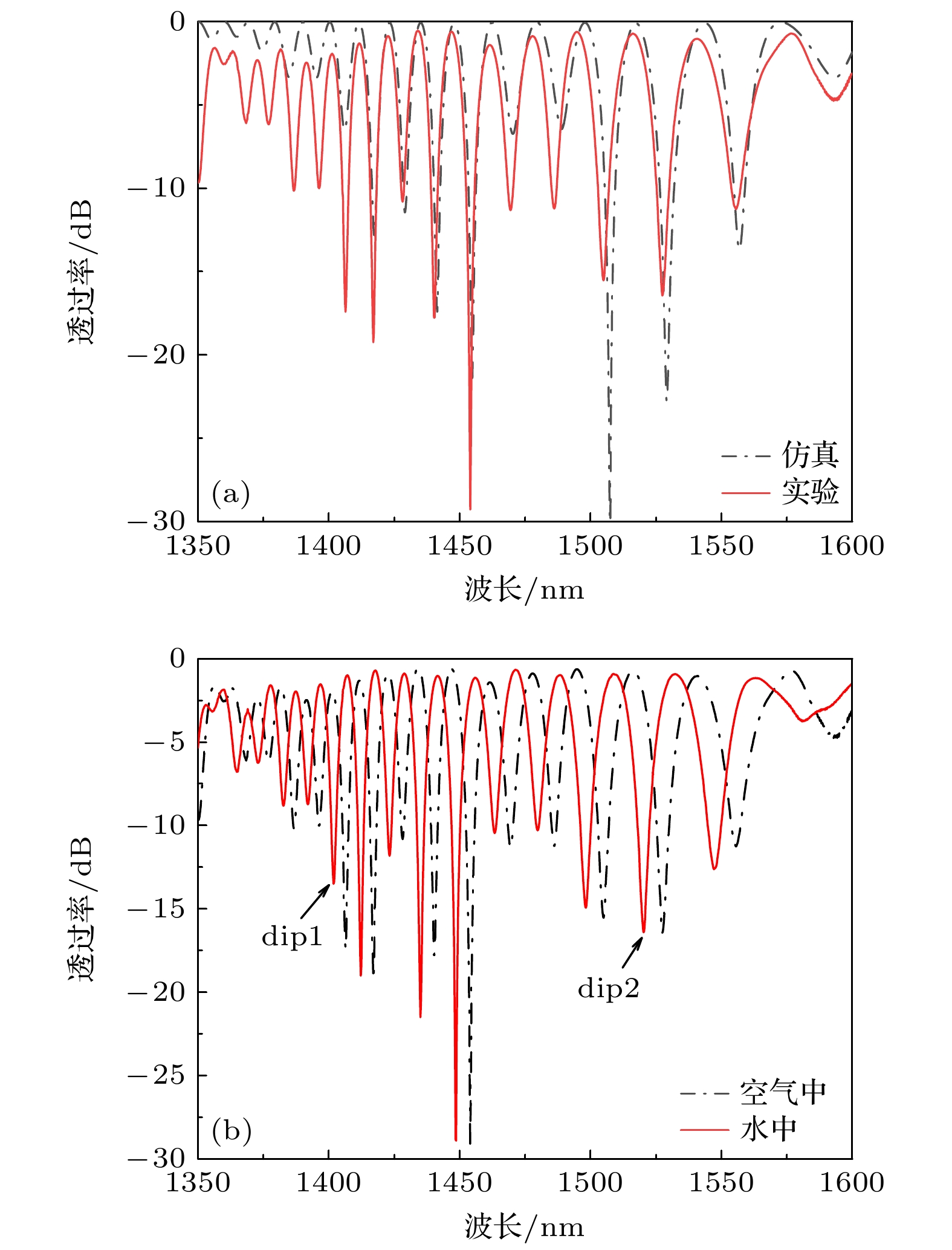

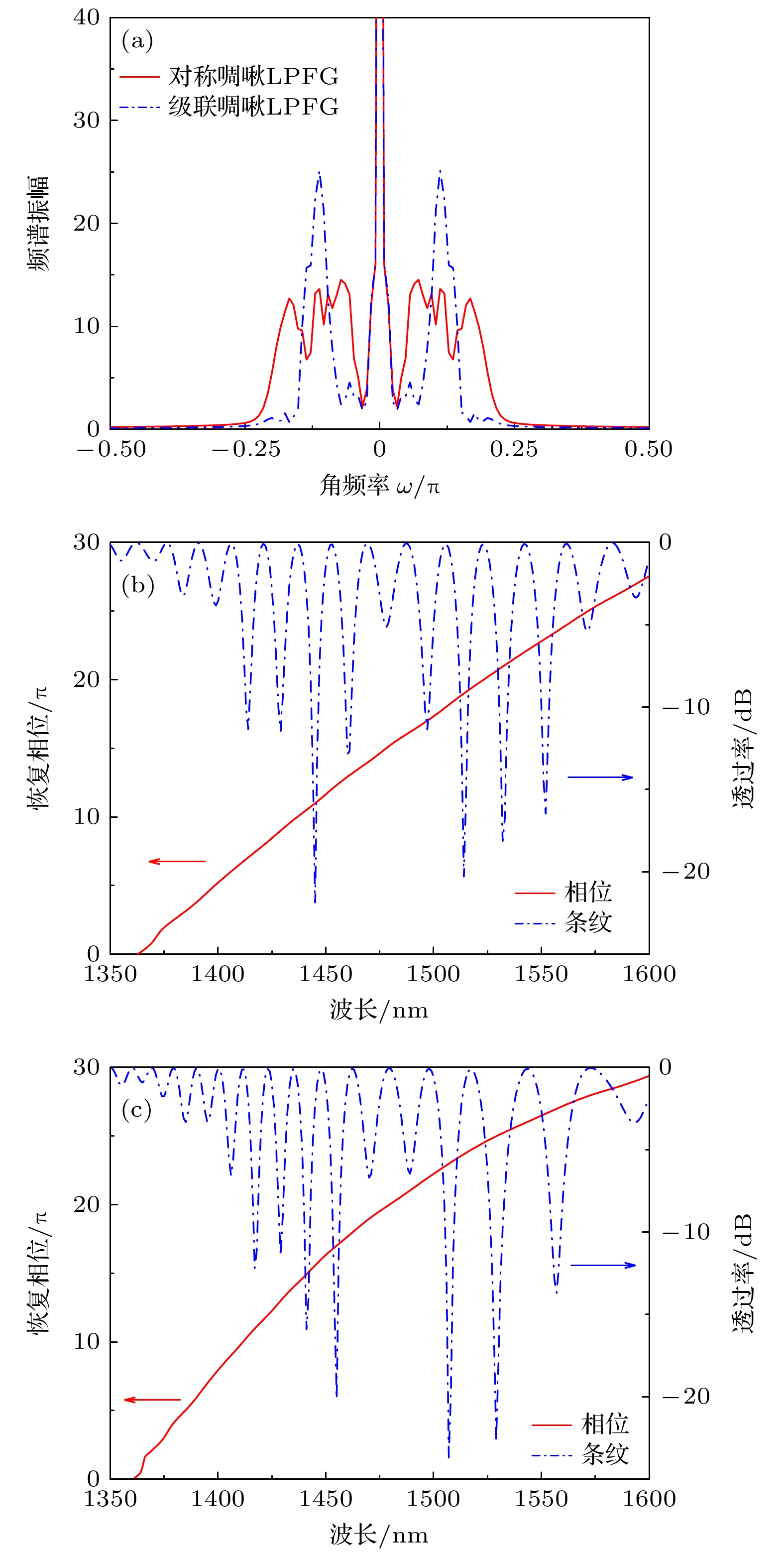

A dual-parameter sensor based on a symmetrically chirped long-period fiber grating (SCLPFG) is proposed and demonstrated. The SCLPFG consists of two segments of long-period fiber gratings (LPFGs) with the same length and average period but opposite chirp coefficients, forming an in-fiber Mach-Zehnder interferometer (MZI). Due to the chirping effect of the LPFG, the core mode at different wavelength couples to the cladding modes at different positions within the positively chirped LPFG. Integrated with the symmetry of the SCLPFG, the stimulated cladding mode recouples to the core at the symmetrical position in the negatively chirped LPFG. Consequently, in this MZI configuration, the effective length of the interference arm is not fixed but varies with wavelength. As a result, the transmission spectrum of the SCLPFG is characterized by a nonuniform fringe pattern where the free spectrum range (FSR) increases with wavelength increasing. For the MZI-based fiber sensor, the phase difference between the core and cladding modes, influenced by environmental parameters, plays a crucial role in determining sensitivity, as this phase difference is directly proportional to the length of the interference arm. Therefore, for a specific measurand, the sensitivities interrogated by the dips at different wavelengths in the fringe pattern are inherently different, which leads to the possibility of multi-parameter sensing through a differential modulation method.The fringe characteristics and sensing mechanism are systematically investigated through theoretical analysis and numerical simulation. In the experimental section, the SCLPFG structure is engraved on a Corning single-mode fiber by irradiating photosensitive core with point-by-point UV pulsed laser. The grating exhibits an average period of 321 μm and a chirping coefficient of ±21.9 μm/cm, with the total length of the symmetrically chirped grating determined to be 4.34 cm. Experimental implementation of simultaneous dual-parameter sensing for surrounding refractive index (SRI) and temperature is conducted, verifying the differential response of distinct fringe dips to SRI and temperature variations. A 2×2 sensitivity coefficient matrix is established by linearly fitting the SRI and temperature response data, which are obtained by interrogating two dips at different wavelengths. Thus, the variations of SRI and temperature are determined by multiplying the inverse sensitivity coefficient matrix with the wavelength shift array. Furthermore, temperature sensitivities are corrected by considering the thermal effect on the refractive index of the liquid. Finally, the maximum sensitivity of the sensor to SRI is –95.316 nm/RIU and a maximum sensitivity to temperature is 0.0849 nm/℃, both of which have excellent linearity. This sensing scheme features a compact structure, high sensitivity, and the ability to measure multiple parameters. Moreover, the multi-channel nonuniform fringe characteristics enable the sensor configuration to be extended for simultaneous measurement of three or more parameters, thus providing a promising lab-on-fiber platform for multi-parameter sensing applications.

Keywords:

symmetrically chirped long-period fiber grating /
dual-parameter sensing /

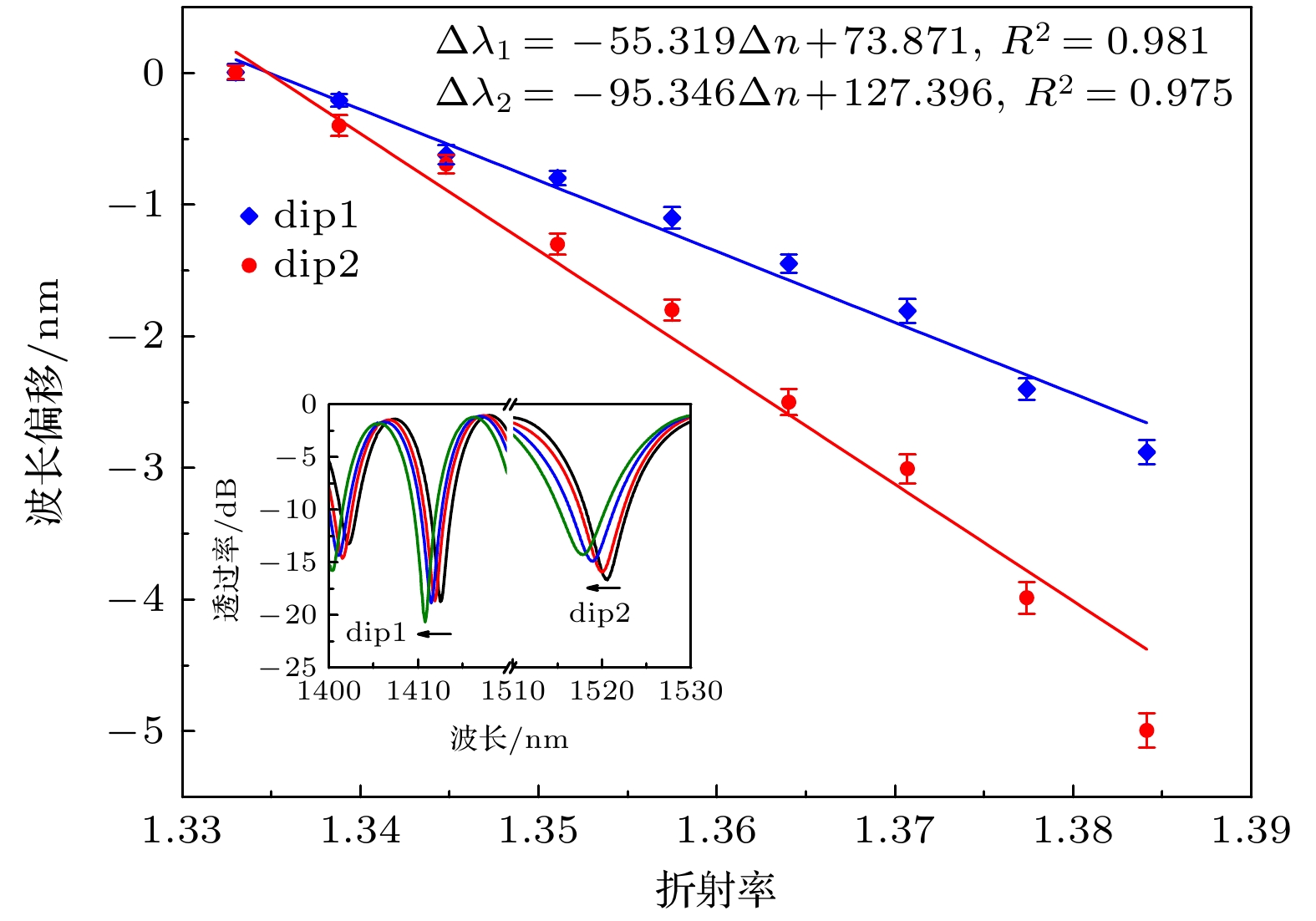

refractive index /

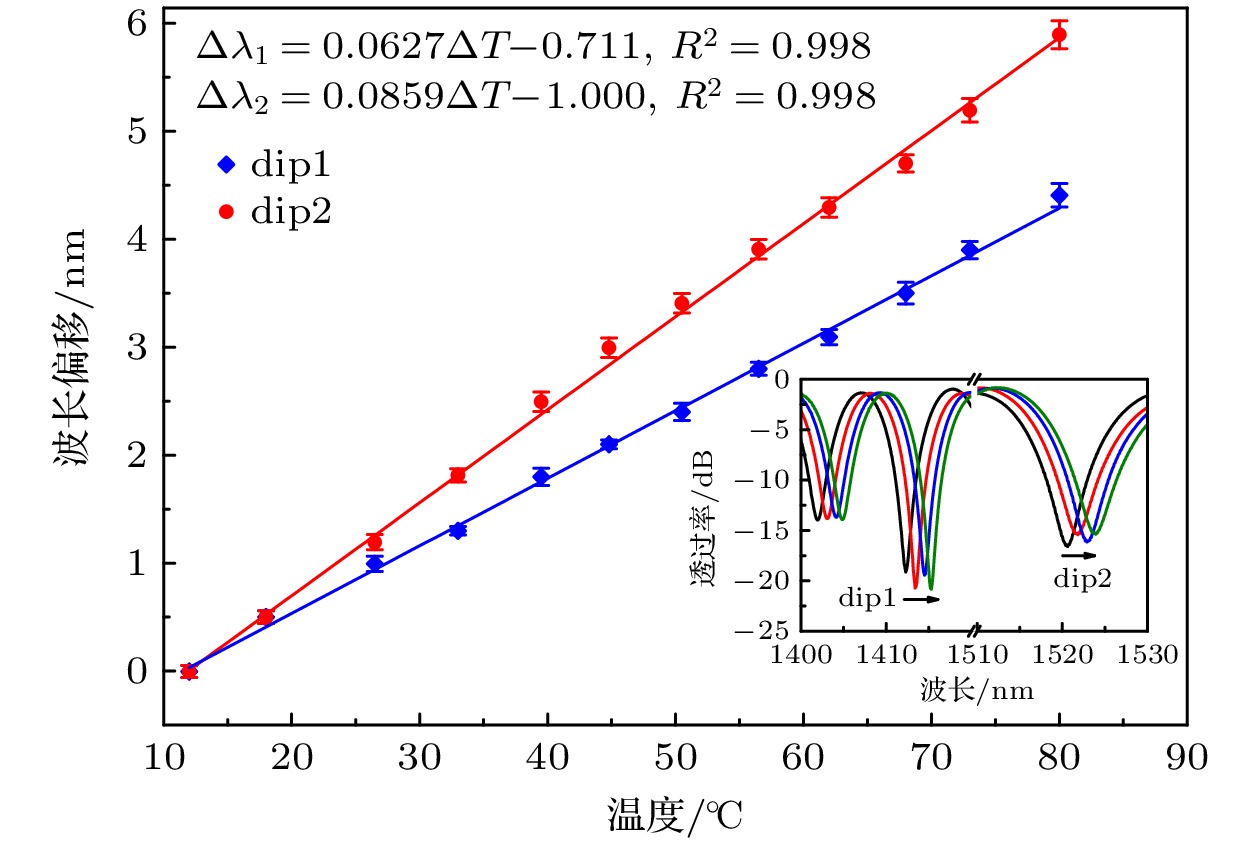

temperature

作者及机构信息

1.

2.

3.

通信作者: 陈海云, chy@zjnu.cn

基金项目: 浙江省基础公益技术应用研究计划(批准号: LGF19F050001)资助的课题.

Authors and contacts

1.

2.

3.

Corresponding author: CHEN Haiyun, chy@zjnu.cn

Funds: Project supported by the Basic Public Welfare Research Project of Zhejiang Province, China (Grant No. LGF19F050001).
