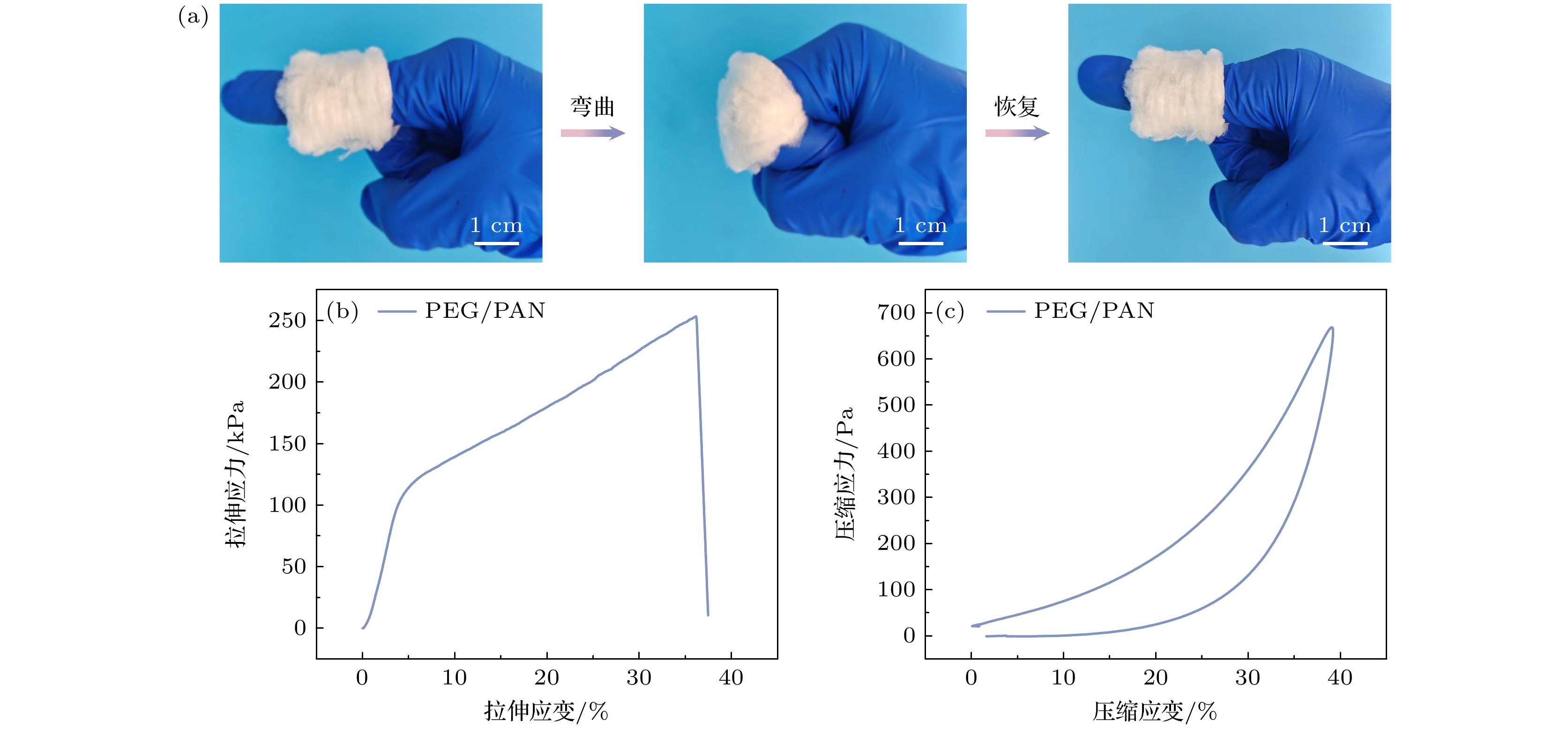

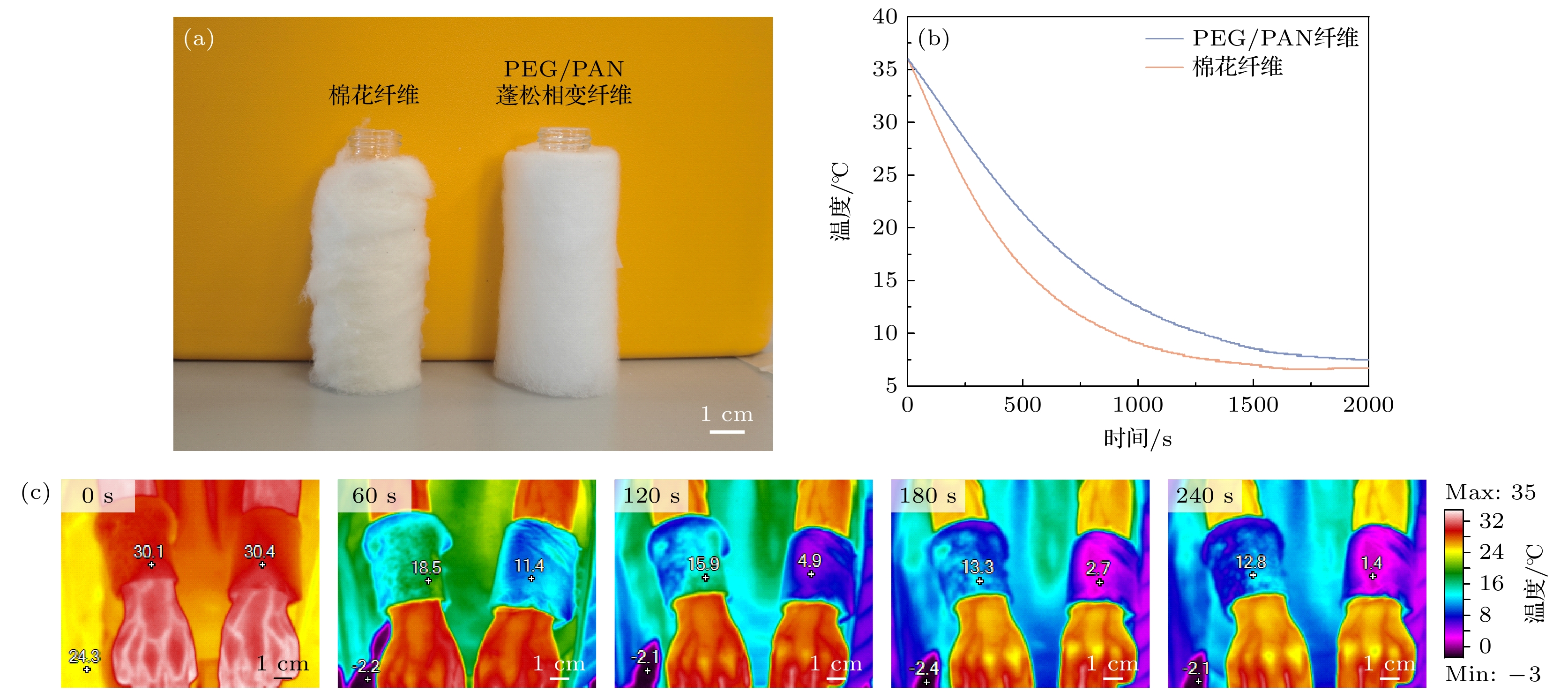

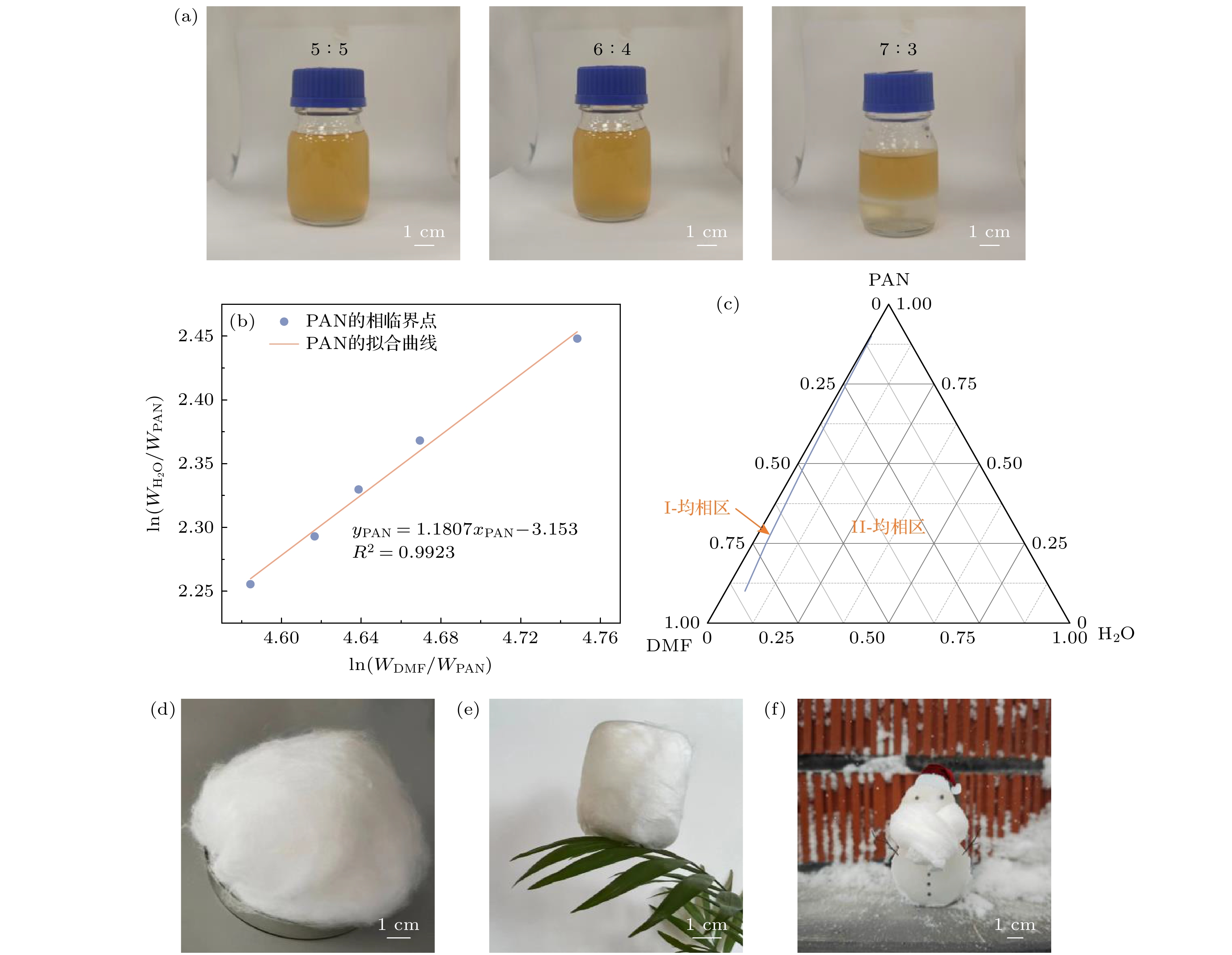

相变纤维作为人体热量管理领域的新型功能材料, 其应用价值日益凸显. 然而, 现有研究体系存在显著的局限性: 基于湿法纺丝工艺制备的单根相变纤维和静电纺丝技术构建的相变纤维薄膜, 因其结构致密性不足导致隔热性能欠佳, 难以有效阻遏寒冷环境下的体温散失. 针对这一技术瓶颈, 本研究突破传统材料体系限制, 创新性地采用静电纺丝技术将聚乙二醇引入聚丙烯腈纤维体系, 通过非溶剂诱导相分离过程, 成功制备出兼具相变温度调节特性和高效隔热性能的蓬松结构相变纤维. 蓬松纤维内部形成的多孔结构可构建高效冷屏蔽层, 其热导率低至0.0395 W/(m·K); 同时, 聚乙二醇相变组分赋予材料优异的相变潜热(80.6 J/g), 实现了温度调节与隔热保温的协同作用. 该材料表现出优异的结构与热稳定性, 在经历500次热循环后仍保持稳定的相变性能, 并在温度低于300 ℃时具备良好的热可靠性. 即使在相变熔点以上, 材料仍能有效防止相变组分泄漏. 同时, 其良好的机械性能可满足弯曲、压缩(668.7 Pa)及拉伸(253.5 kPa)等多种形变需求, 未发生结构塌陷. 人体热管理实验进一步证实, 其冷防护性能显著优于传统棉花材料. 本研究不仅提供了一种“储热-隔热”一体化纤维的创新制备方案, 更从原理上拓展了相变纤维在热管理中的设计维度, 为开发高性能可穿戴冷防护材料提供重要的解决方案和理论指导.Phase change fibers, as an advanced functional material for human body thermal management, have significant potential for practical applications. However, current research systems face critical limitations: traditional phase change fibers prepared via wet spinning and electrospun phase change fiber films encounter insufficient thermal insulation due to their structural compactness deficiencies, thereby failing to effectively prevent body heat loss in cold environments. To tackle this technical challenge, this work breaks through traditional material system limitations by innovatively employing electrospinning technology to integrate polyethylene glycol (PEG) into polyacrylonitrile (PAN) fiber systems. We successfully fabricate fluffy-tructured phase change fibers that integrate both phase change thermoregulation and thermal insulation functions using the principle of non-solvent-induced phase separation. The internal porous structure of the fluffy fibers constructs an effective cold protection layer, exhibiting an ultra-low thermal conductivity of 0.0395 W/m·K. At the same time, the PEG phase change componentprovides a high latent heat of 80.6 J/g, achieving a synergistic effect of temperature regulation and thermal insulation. The material exhibits excellent structural and thermal stability: maintaining stable phase change performance after 500 thermal cycles and exhibiting exceptional thermal reliability up to 300 ℃. Even above the phase change melting point, the material effectively prevents leakage of the phase change component. Furthermore, it possesses sufficient mechanical properties to withstand various deformations such as bending, compression (668.7 Pa), and stretching (253.5 kPa) without structural collapse. Practical application evaluations further demonstrate that the material’s cold protection performance significantly exceeds that of natural cotton. This study not only provides an innovative strategy for fabricating integrated “heat storage-thermal insulation” fibers, but also conceptually expands the design dimensions of phase change fibers in thermal management, offering important solutions and theoretical guidance for developing high performance wearable cold-protection materials.
-
Keywords:
- fluffy structure phase change fibers /
- polyethylene glycol /
- polyacrylonitrile /
- personal cold protection
-
样品名称 Tm/℃ ∆Hm/(J·g–1) Tc/°C ∆Hc/(J·g–1) PEG 25.1 152.4 26.1 146.6 PEG/PAN 21.8 80.6 23.5 71.8 第100次循环 21.8 80.1 23.5 71.3 第200次循环 21.7 79.4 23.4 70.6 第300次循环 21.7 80.3 23.5 71.1 第400次循环 21.9 80.1 23.6 70.0 第500次循环 21.8 79.4 23.6 70.5 -
[1] [2] [3] [4] [5] [6] [7] [8] [9] [10] [11] [12] [13] [14] [15] [16] [17] [18] [19] [20] [21] [22] [23] [24] [25] [26] [27] [28] [29] [30] [31] [32] [33] [34]
