苏锐; 李庆安; 管鹏飞

doi:10.7498/aps.74.20241084

摘要

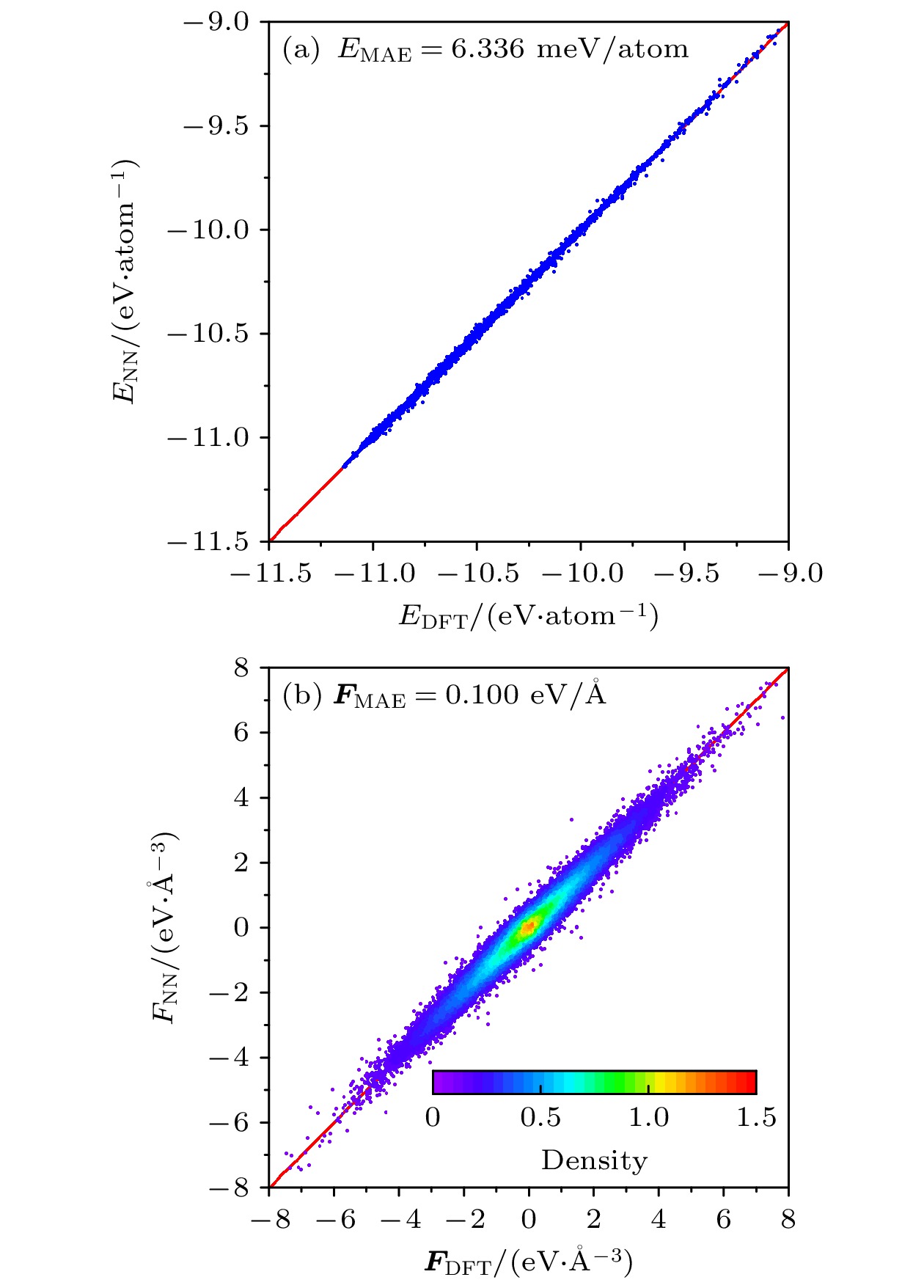

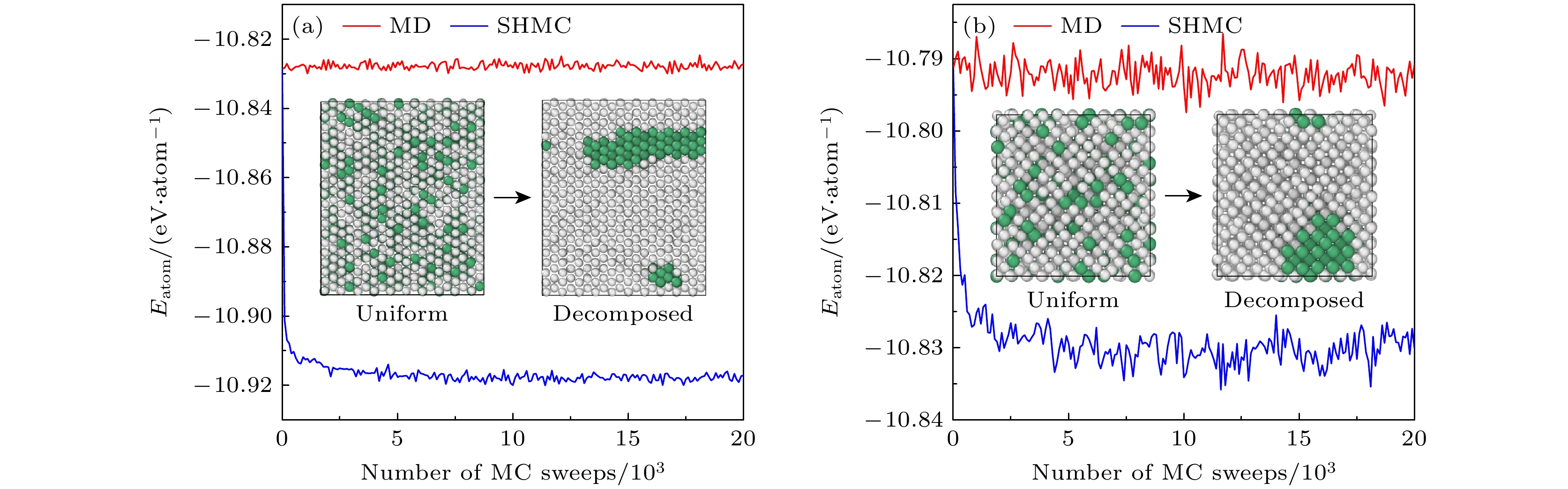

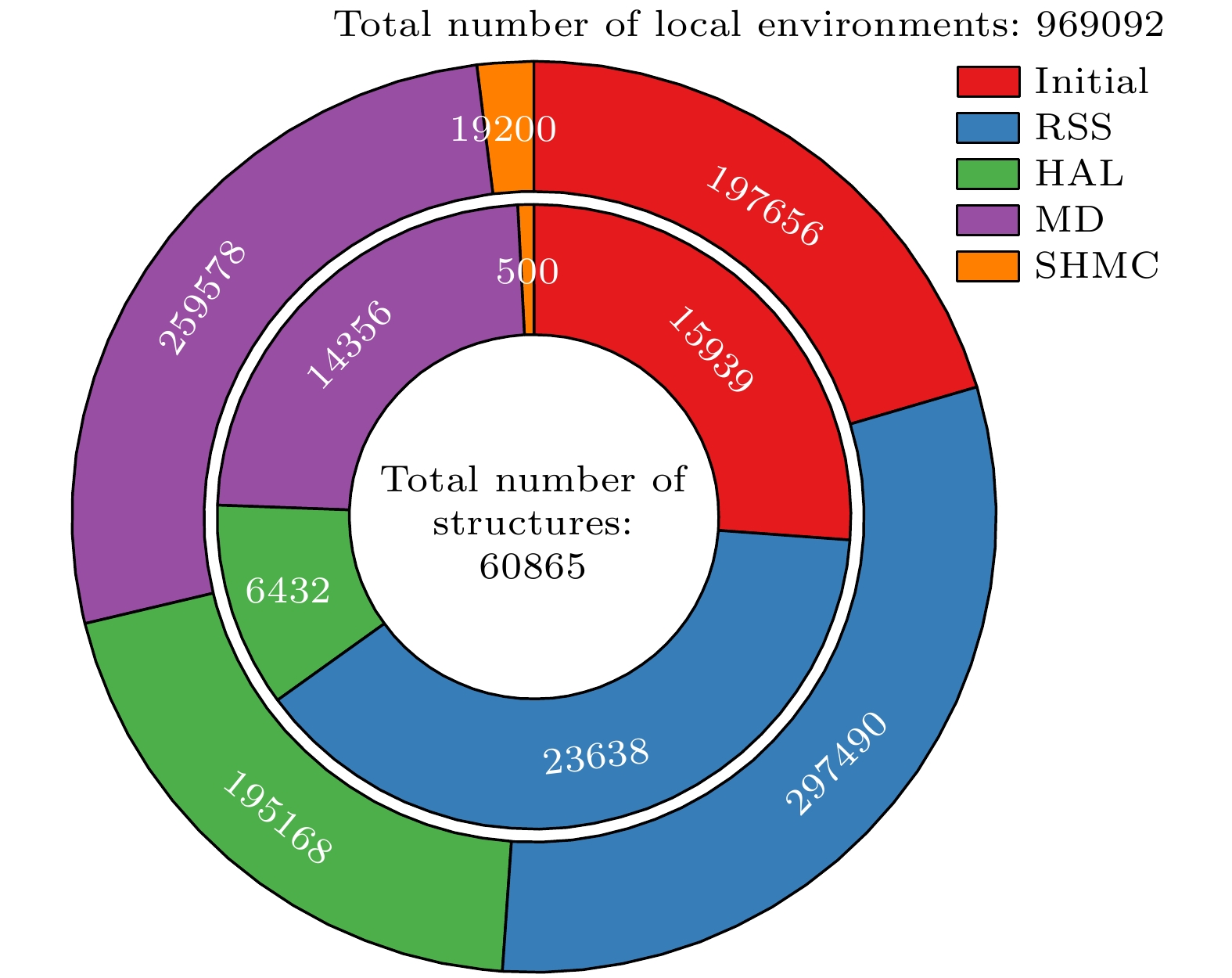

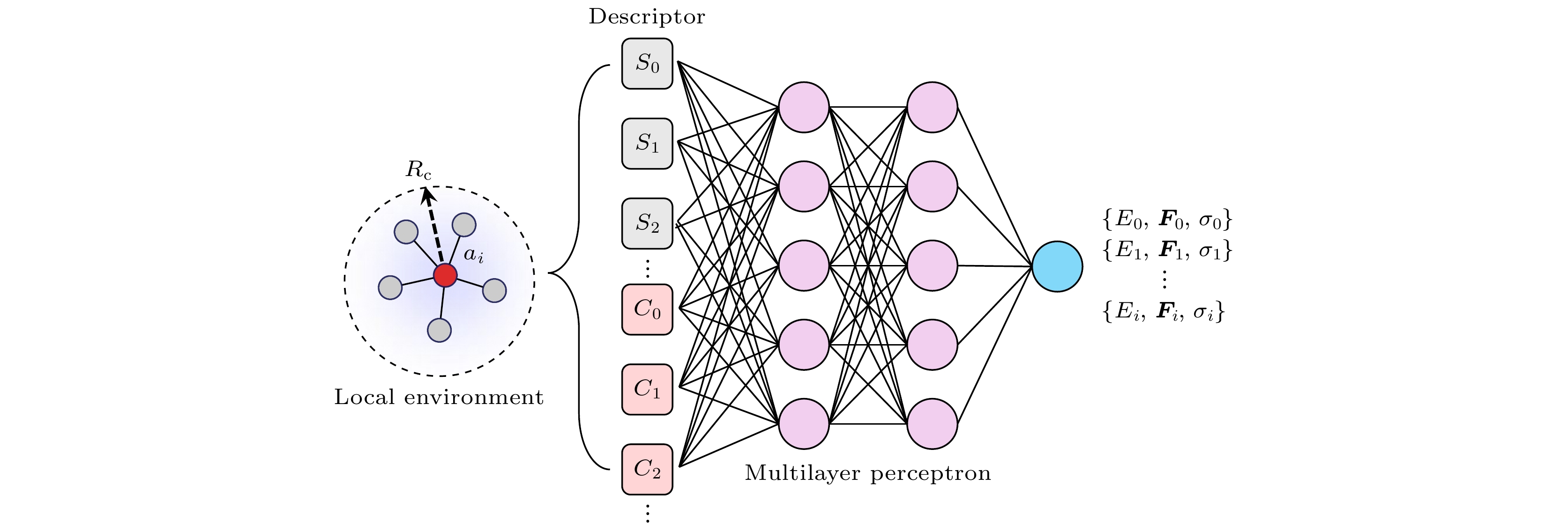

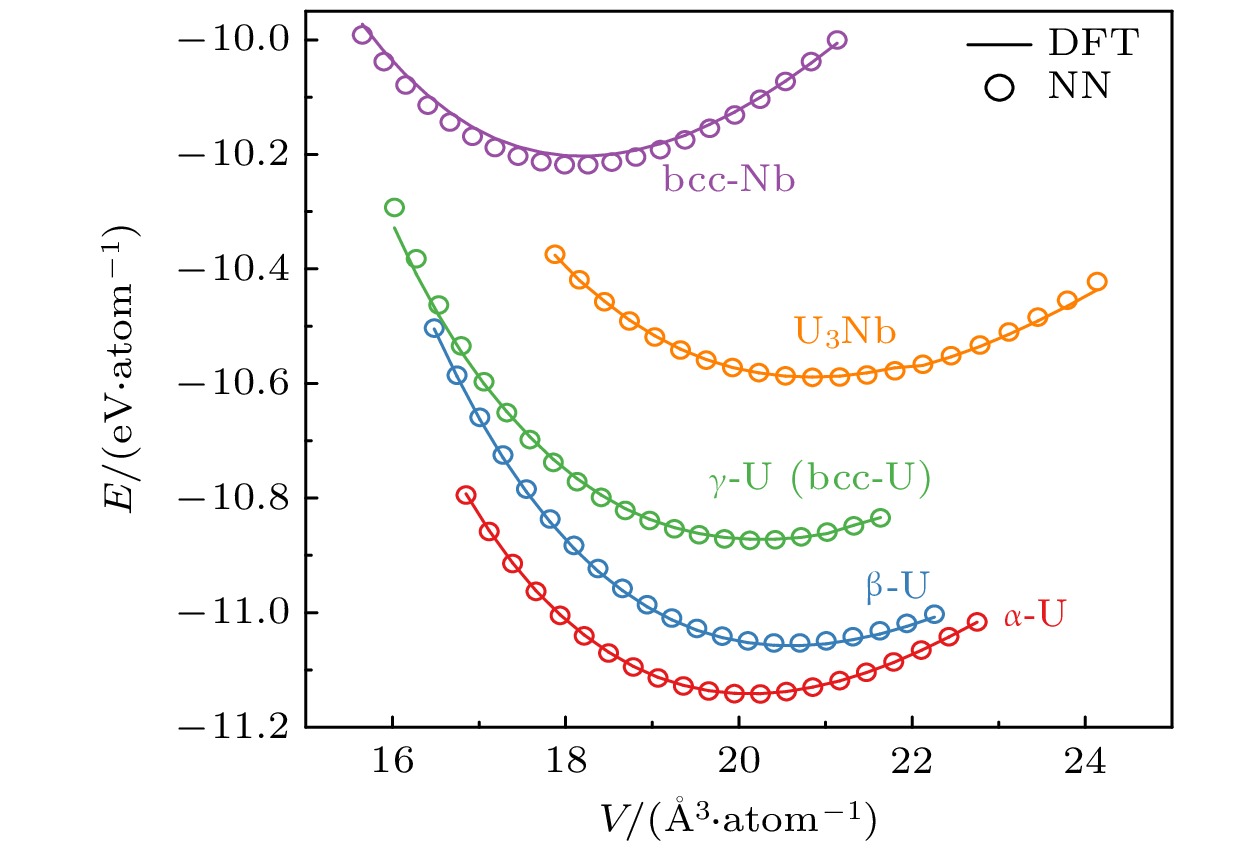

铀铌合金在不同实验环境中呈现出复杂的晶体相和独特的力学性能, 但原子尺度的相析出和形变损伤机制尚不清楚, 其根本原因是缺乏支撑大尺度分子动力学模拟的精确铀铌合金原子相互作用势. 本工作基于自主开发的神经网络势能函数及随机搜索方法, 构建了覆盖全化学空间的铀铌合金第一性原理计算数据库, 并基于神经网络框架建立了具有较高泛化性能和精度的铀铌二元体系机器学习势函数, 其能量和力的测试平均绝对误差分别为5.6 meV/atom和0.095 eV/Å, 可以精确地描述不同化学成分铀铌合金的晶体空间结构、状态方程及热力学参量. 基于该势函数, 我们实现了低温时效下铀铌合金相失稳分解过程的原子尺度模拟, 初步阐明了Nb析出相对其合金力学性能的影响及原子响应机制.

关键词:

Abstract

Uranium-niobium alloys exhibit complex crystal phases and unique mechanical behaviors under various thermodynamic states and external loads. However, due to the lack of accurate interatomic potentials, the atomic-scale phase behaviors and dynamical processes in this important alloy are still unclear. In recent years, the development of machine-learning-based force fields has provided a systematic way to generate accurate interatomic potentials on large and complex first-principle-based datasets. However, this crucial nuclear material has received limited attention from researchers in the field of machine-learning potentials.In this work, based on our previous researches on the neural-network potential training and evaluation framework, which we called NNAP (neural-network atomic potential), a new neural network potential is constructed for the uranium-niobium alloy system. A combination of random structure search and active learning algorithms is utilized to enhance coverage of the chemical and structural space of the alloy system. Testing of the generated potential demonstrates high generalization performance and accuracy. On the testing set, the mean absolute error of the energy and the force are 5.6 meV/atom and 0.095 eV/Å, respectively. Further calculation results of crystal structure parameters, equation of state, and phonon dispersions coincide well with the results from the first-principle or experimental references.The atomic-scale evolution of the spinodal decomposition process in the U-Nb alloys is investigated based on the newly trained potential. It is shown that the atom-swapping hybrid Monte Carlo can be a powerful tool to understand the thermodynamic evolution of the systems. By using the atom-swapping hybrid Monte Carlo method, the decrease of potential energy due to phase segregation is observed within 5000 steps, while no significant energy reduction is found after 3-ns MD simulation. Finally, the stress-strain curves under shear load for different initial states are obtained. It is found that the Nb precipitation generates strengthened phases in the alloy and the deformation behavior of U-Nb alloys is significantly changed, where a disorder shear band emerges in the deformation path of the $ {\mathrm{\gamma }} $-phase alloys. Our work lays a foundation for understanding the mechanical processes in this important alloy system.

Keywords:

作者及机构信息

1.

2.

通信作者: 管鹏飞, pguan@nimte.ac.cn

基金项目: 计算物理全国重点实验室(批准号: 6142A052204020)、国家自然科学基金青年科学基金(批准号: 51801046)和国家杰出青年科学基金(批准号: T2325004)资助的课题.

Authors and contacts

1.

2.

Corresponding author: GUAN Pengfei, pguan@nimte.ac.cn

Funds: Project supported by the Foundation of National Key Laboratory of Computational Physics, China (Grant No. 6142A052204020), the Young Scientists Fund of the National Natural Science Foundation of China (Grant No. 51801046), and the National Science Fund for Distinguished Young Scholars of China (Grant No. T2325004).

文章全文

参考文献

[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[22]
[23]
[24]
[25]
[26]
[27]
[28]
[29]
[30]
[31]
[32]
[33]
[34]
[35]
[36]
[37]
[38]
[39]
[40]
[41]
[42]
[43]
[44]

施引文献

下载: 全尺寸图片幻灯片

晶体相	晶格参数/Å	DFT	NNP	Exp.
$ \alpha \text{-}{\mathrm{U}} $	$ a $	2.806	2.809 (+0.10%)	2.836^[40]
	$ b $	5.836	5.854 (+0.32%)	5.867^[40]
	$ c $	4.908	4.893 (–0.31%)	4.935^[40]
$ \gamma \text{-}{\mathrm{U}} $	$ a $	3.435	3.431 (–0.12%)	3.47^[41]
$ \gamma \text{-}{\mathrm{N}}{\mathrm{b}} $	$ a $	3.308	3.309 (+0.03%)	3.3063^[42]
$ {{\mathrm{U}}}_{2}{\mathrm{N}}{\mathrm{b}} $	$ a $	4.806	4.799 (–0.15%)	—
$ {{\mathrm{U}}}_{2}{\mathrm{N}}{\mathrm{b}} $	$ c $	5.903	5.914 (0.18%)	—

下载: 导出CSV
