Hydrogen storage properties of Na-decorated Bn(n = 3–10) clusters

LI Hailing; ZHENG Xiaoping; QI Pengtang; ZHANG Juan

doi:10.7498/aps.74.20250194

Abstract

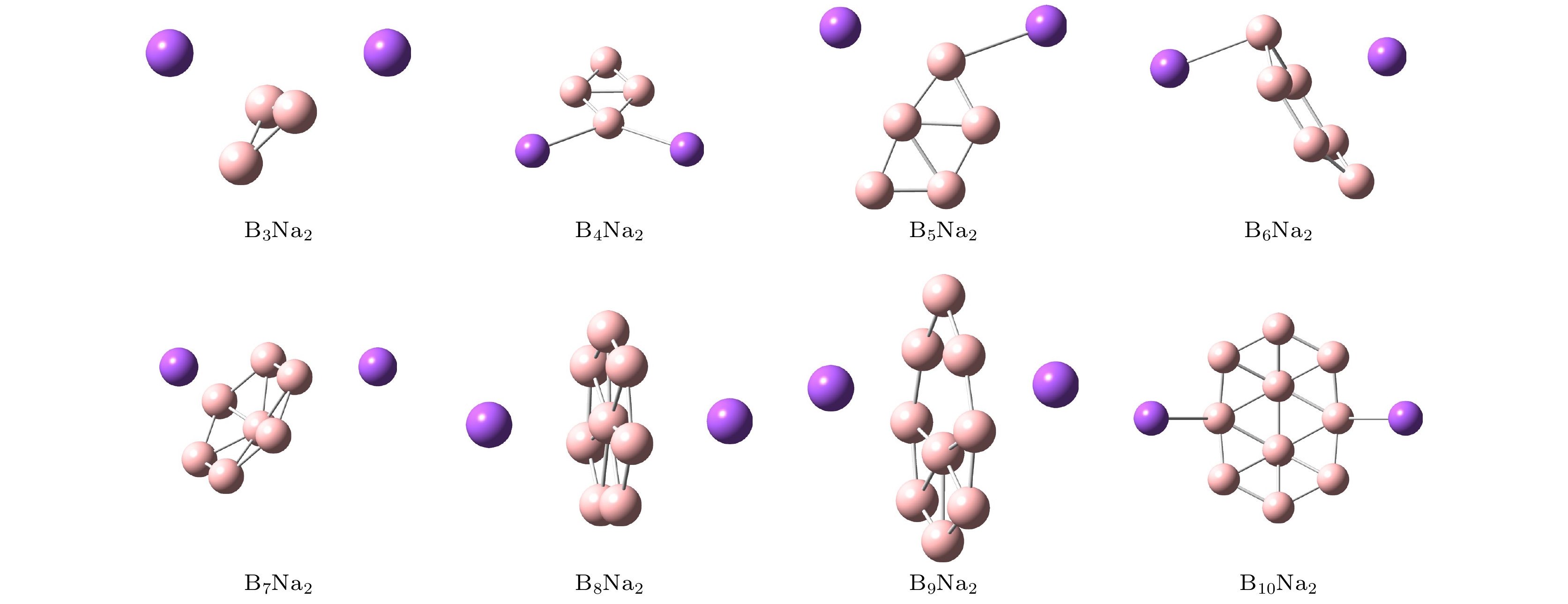

Hydrogen is widely regarded as an ideal alternative energy source because of its high efficiency, abundance, pollution-free and renewable properties. One of the main challenges is to find efficient materials that can store hydrogen safely with fast kinetics, favorable thermodynamics, and high hydrogen density under ambient conditions. The nanomaterial is one of the most promising hydrogen storage materials because of its high surface-to-volume rate, unique electronic structure and novel chemical and physical properties. In this study, the hydrogen storage properties of Na-decorated B_n (n = 3–10) clusters are investigated using dispersion-corrected density functional theory and atomic density matrix propagation (ADMP) simulations. The results show that Na atoms can stably bind to B_n clusters, forming B_nNa₂ complexes. The average binding energies (1.876–2.967 eV) of Na atoms on the host clusters are significantly higher than the cohesive energy of bulk Na (1.113 eV), which effectively prevents Na atoms from gathering on the cluster surface. Furthermore, when Na atoms bind to B_n (n = 3–10) clusters, electrons transfer from Na to B atoms, resulting in positively charged Na atoms. Hydrogen molecules are moderately polarized under the electric field and adsorbed around Na atoms through electrostatic interactions. The H–H bonds are slightly stretched but not broken. The Na-decorated B_n clusters can adsorb up to 10 hydrogen molecules with average adsorption energies of 0.063–0.095 eV/H₂ and maximum hydrogen storage densities reaching 11.57%–20.45%. Almost no structural change is observed in the host clusters after adsorbing hydrogen. Molecular dynamics simulations reveal that the desorption rate of hydrogen molecules increases with temperature rising. At ambient temperature (300 K), B_nNa₂ (n = 3–8) clusters achieve complete dehydrogenation within 262 fs, while B₉Na₂ and B₁₀Na₂ clusters exhibit a dehydrogenation rate of 90% within 1000 fs. The Na-decorated B_n (n = 3–10) clusters not only exhibit excellent properties for hydrogen storage but also enable efficient dehydrogenation at ambient temperature. Thus, B_nNa₂ (n = 3–10) clusters can be regarded as highly promising candidates for hydrogen storage.

Keywords:

Authors and contacts

Corresponding author: ZHENG Xiaoping, zhengxp@lut.edu.cn ; QI Pengtang, qipt@lzjtu.edu.cn ;

Funds: Project supported by the Key Research and Development Programm of Science and Technology Plan of Gansu Province, China (Grant No. 24YFGA027), the Key Project of Natural Science Foundation of Gansu Province, China (Grant No. 22JR5RA313), and the Talent Innovation and Entrepreneurship Project Lanzhou University, China (Grant No. 2018-RC-114).

FullText HTML

References

[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[22]
[23]
[24]
[25]
[26]
[27]
[28]
[29]
[30]
[31]
[32]
[33]
[34]
[35]

Cited By

DownLoad: Full-Size Img PowerPoint

团簇	E_b/eV	E_g/eV	d_Na—B/Å	d_Na—Na/Å	Q_Na/e
B₃Na₂	1.876	2.807	2.519	4.332	0.837
B₄Na₂	1.756	1.901	2.355	4.043	0.868
B₅Na₂	1.859	1.867	2.406	4.440	0.899
B₆Na₂	2.520	2.745	2.536	5.189	0.902
B₇Na₂	2.162	2.474	2.646	5.079	0.894
B₈Na₂	2.967	3.320	2.424	4.849	0.979
B₉Na₂	2.572	3.546	2.669	4.667	0.972
B₁₀Na₂	2.120	2.348	2.359	6.574	0.979

DownLoad: CSV

饱和吸氢结构	E_ads/eV	d_H—H/Å	d_Na—H2/Å	d_Na—B/Å	H₂/%
B₃Na₂(H₂)₁₀	0.063	0.749	2.561	2.550	20.45
B₄Na₂(H₂)₁₀	0.066	0.749	2.578	2.379	18.43
B₅Na₂(H₂)₁₀	0.073	0.749	2.569	2.474	16.77
B₆Na₂(H₂)₁₀	0.085	0.749	2.552	2.672	15.39
B₇Na₂(H₂)₁₀	0.077	0.748	2.590	2.620	14.22
B₈Na₂(H₂)₁₀	0.088	0.748	2.553	2.477	13.21
B₉Na₂(H₂)₁₀	0.087	0.748	2.583	2.668	12.33
B₁₀Na₂(H₂)₁₀	0.095	0.749	2.535	2.433	11.57

DownLoad: CSV

团簇	吸氢前		饱和吸氢后
团簇	Q_B/e	Q_Na/e	Q_B/e	Q_Na/e	Q_H/e
B₃Na₂	–0.558	0.837	–0.565	0.848	0.001
B₄Na₂	–1.023	0.938	–0.896	0.866	0.001
B₅Na₂	–0.837	0.899	–0.685	0.878	0.001
B₆Na₂	–0.675	0.902	–0.483	0.889	0.005
B₇Na₂	–0.258	0.894	–0.381	0.891	0.006
B₈Na₂	–0.146	0.979	–0.132	0.919	0.005
B₉Na₂	–0.109	0.972	–0.087	0.912	0.007
B₁₀Na₂	–0.376	0.979	–0.317	0.912	0.005

DownLoad: CSV
